USB 10 Channel 12 Bit Data Acquisition Module With Onboard STM32 MCU And CH340 USB To Serial Interface Plug And Play For Easy PC Access To 10 Analog Inputs Reserved UART For MCU Ideal For Data Logging And Prototyping

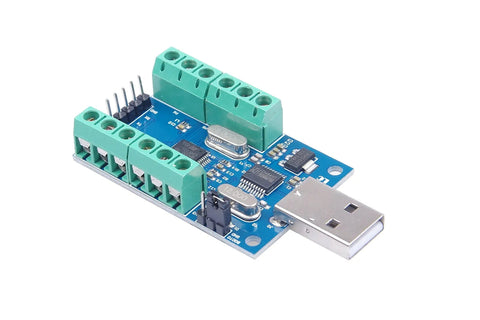

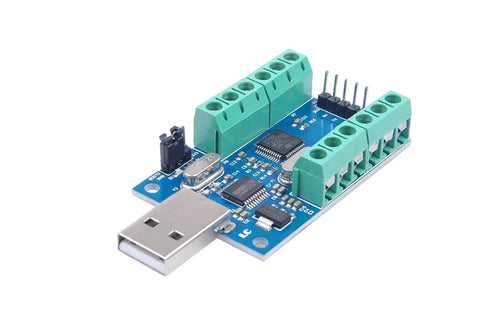

USB 10-Channel 12-Bit Data Logger Module with STM32 MCU
✔️ 10 channels, 0-3.3V range, 12-bit ADC, USB CH340 bridge

Compact data acquisition module providing ten single-ended analog inputs. It plugs into a PC via USB for easy real-time reading and logging, making it handy for prototyping, experiments, and lab setups.

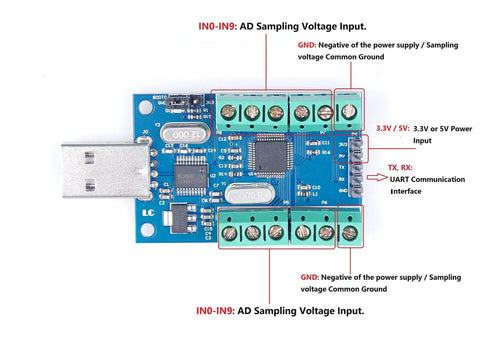

✅ 10 single-ended analog inputs, 0-3.3V range, 12-bit ADC
✅ On-board STM32F103C8T6 master MCU for local processing

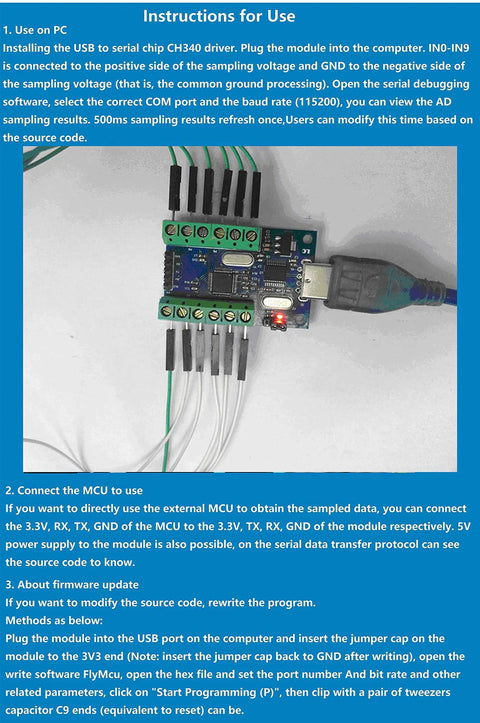

✅ CH340 USB-to-serial interface for plug-and-play PC access
✅ Reserved UART interface to connect an MCU for data sharing
✅ Size 50 x 40 mm (L x W, excluding USB plug); 3.3/5 V supply

💡 What is a USB data acquisition module used for in electronics projects?

This handy device plugs into a PC to capture multiple analog signals for logging, monitoring, and analysis. - Handy for data logging in prototypes and test rigs - 12-bit resolution for detailed signal capture - 10 input channels for multi-signal monitoring - Onboard STM32 MCU with CH340 USB bridge for simple setup
