Upgraded Handheld Oscilloscope With Multimeter And DDS Generator, 50 MHz Bandwidth, 250 MSa Sampling, 19999 Counts, Dual Channel, XY Persistence, Math Operations, Cursor Measurements, For Voltage, Current, Capacitance, Resistance, Diode Tests
✔️ 50 MHz BW, 250 MSa/s, 19999 counts, 2 channels, XY mode

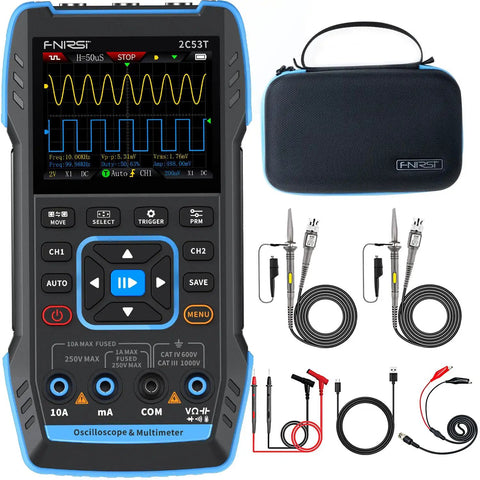

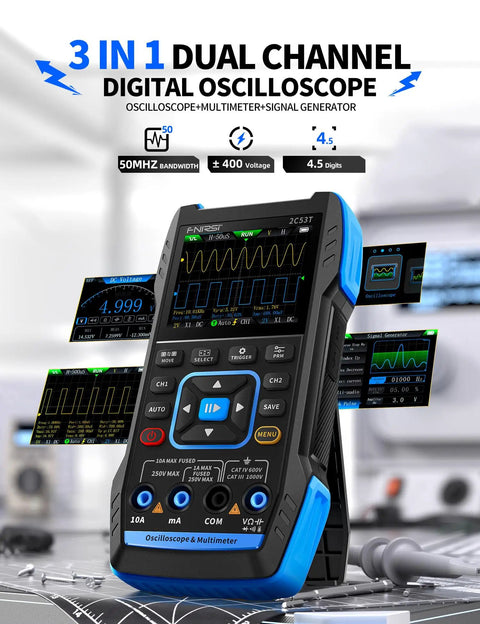

The 2C53T is an upgraded handheld oscilloscope that combines a dual-channel scope, a 4.5-digit multimeter, and a DDS signal generator in a portable unit. It's built for field techs, labs, and classrooms where quick waveform capture and multi-parameter measurements matter.

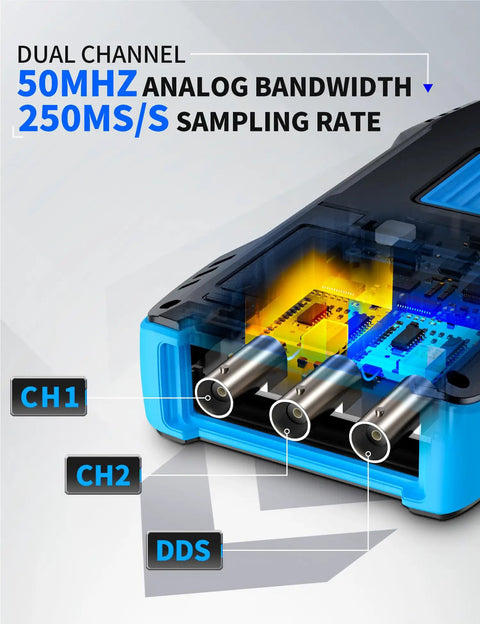

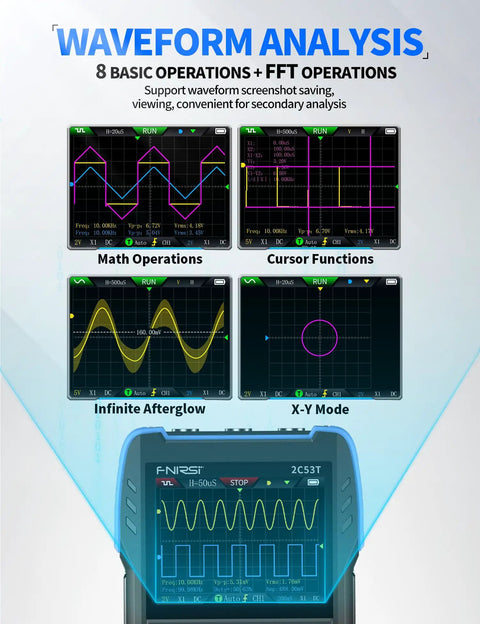

✅ 50 MHz bandwidth, 250 MSa/s sampling, 1 Kpts record depth, 400 V max input, 2-channel operation, XY persistence, math operations, cursor measurements, waveform storage/export

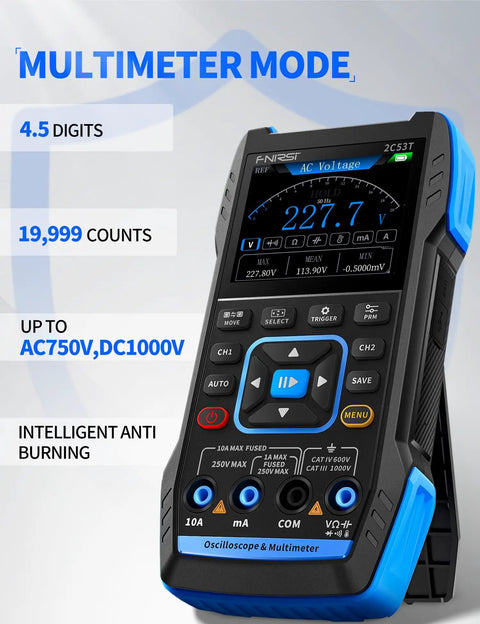

✅ Multimeter: AC Voltage 0-750 V, DC Voltage 0-999.9 V, DC/AC Current 0-9.999 A, Resistance 0-19.99 MΩ, Capacitance 0-99.99 mF, Continuity

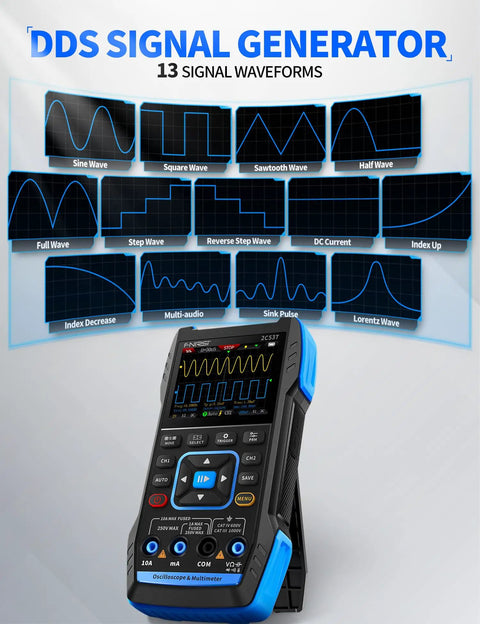

✅ DDS signal generator up to 50 kHz with 13 waveforms
✅ Save function one-click save, Type-C PC upload for comparing reference vs measured waveforms
✅ High-voltage protection, 3000 mAh battery, 2.8" LCD, 6 h standby, language switch, firmware update
💡 What is a handy handheld oscilloscope with integrated multimeter used for in electronics work?
A compact tool that helps you test signals and measure key parameters on the go. - handy for field service and on-site diagnostics - measures voltage, current, resistance, and capacitance quickly - captures waveforms with persistence and supports math operations
