Universal Milling Machine Indexing Head With Tailstock And Indexing Plate For Cnc Routers Vertical Horizontal Dual Setup No Sweat Angle Adjustment Knockout Precision Clamping Shop Ready Tooling

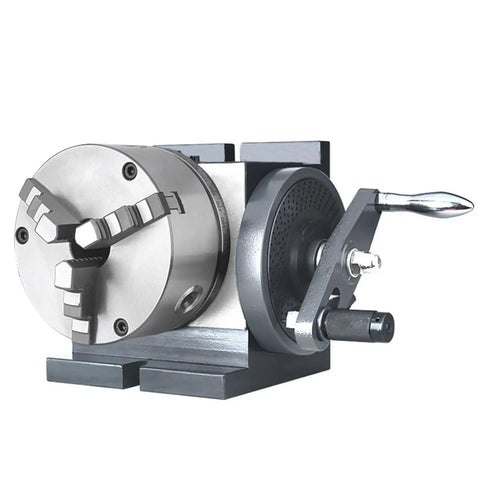

✔️ Manual cast iron indexing head with angle adjustment and 1:40 ratio
This universal indexing head clamps workpieces at angles from -10° to 90° for accurate splitting on mills, grinders, and drill presses. Heavy-duty cast iron construction resists wear, while the direct indexing plate and movable spindle support equal and unequal cuts up to a 1:40 ratio. Each package ships one ready-to-use unit with accessories, and you can pick a 6-inch (160mm) or 8-inch (200mm) model to match your machine bed width.
✅ Manual handwheel control with clear graduations for exact positioning.✅ Heavy cast iron build withstands shop abuse and keeps accuracy over time.
✅ Adjustable head tilts freely for vertical, horizontal, or slanted holding.
✅ Direct indexing plate mounts straight to spindle housing for fast changes.
✅ Interchangeable plates cover multiple hole spacings for diverse indexing tasks.
✅ Works well with honeycomb fixtures to achieve tight 1:40 reduction ratios.

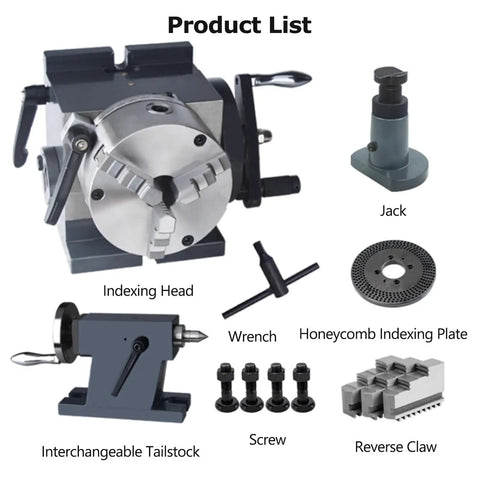

✅ Package includes one complete indexing head assembly for immediate use.
✅ Select between 6-inch (160mm) and 8-inch (200mm) center spans based on your mill size.
✅ Clamping force locks securely to keep parts steady during heavy cuts.
✅ Great addition to milling machines, planers, and grinding equipment shops.
💡 How does a universal indexing head improve part accuracy on a milling machine
* Regular indexing splits circles into even segments useful for hex nuts or bolt heads.
* Differential indexing enables uneven divisions impossible with standard plate setups alone.
* Tilting mechanism angles the workpiece for gear tooth profiles and cam contours.
* Secure mounting prevents vibration during aggressive material removal for better finishes.
