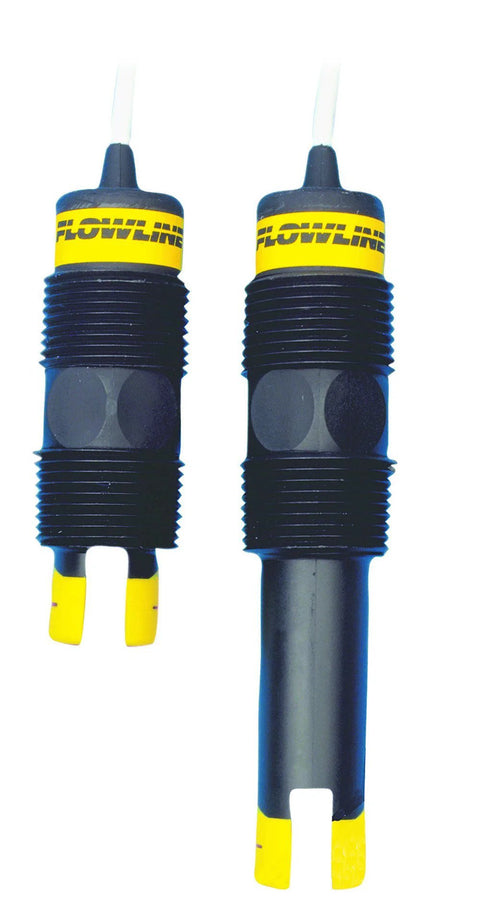

Ultrasonic Level Switch For Hazardous Environments With PFA Teflon Sensor And Cable For Corrosive Liquids CSA Approved Intrinsically Safe Three Quarter In NPT 60VA Relay NO NC Polarity Via Wiring Compatible With Smart Trak Switch Pak LU10-2405
✔️ CSA-approved, intrinsically safe, submersible PFA sensor, 3/4in NPT
CSA approved intrinsically safe ultrasonic level switch designed for hazardous environments, using a submersible PFA Teflon sensor to detect corrosive liquids. It offers a 60 VA relay with NO/NC that is selectable by wiring polarity, and mounts through a 3/4" NPT port for easy installation. Compatible with Smart Trak and Switch-Pak installation fittings for quick system integration.
✅ Accuracy: +/-1 mm in water; repeatability +/-0.5 mm in water
✅ Supply voltage: 12-36 VDC; current draw ~25 mA
✅ Output: SPST relay, 60 VA; NO/NC selectable via wiring polarity
✅ Process temperature: -40 to 176 F; pressure up to 150 psi at 25 C
✅ Sensor and cable: PFA Teflon, 4-conductor shielded #22 AWG; IP68/NEMA 4X; Viton gasket
💡 What is an intrinsically safe ultrasonic level switch used for in hazardous environments?
These handy devices provide safe, reliable liquid level detection in tanks containing corrosive or flammable liquids while meeting standard safety requirements.
- intrinsically safe level monitoring for hazardous environments- submersible PFA sensor compatibility with corrosive liquids
- 3/4" NPT process mounting with Viton gasket and CSA/CE approvals
