Ultra Compact Lidar Sensor Scanner With UART I2C 0.2 To 20 Meters Long Range For Micro Drones Robots UAVs Makers Ideal For DToF Projects Compatible With Arduino Raspberry Pi Pixhawk SDK
✔️ Single-unit LIDAR, 0.2-20 m range, I2C/UART, 3.3V powered

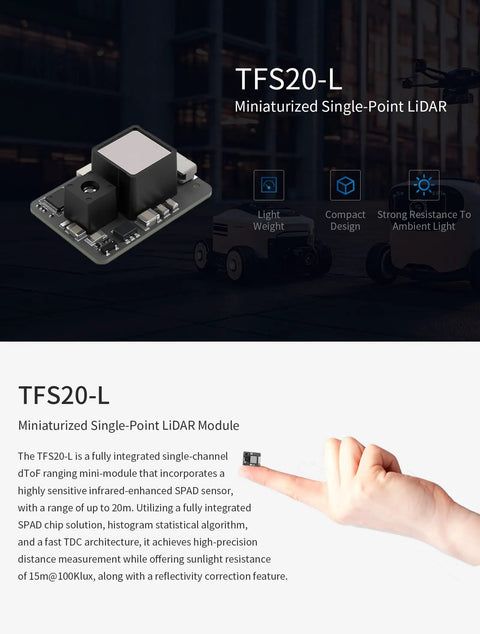

This ultra-compact lidar sensor is a single-channel dToF distance module designed for micro drones, service robots, and DIY projects. It delivers accurate ranging for obstacle avoidance, mapping, and altitude estimation, and easily integrates with Arduino, Raspberry Pi, or Pixhawk SDK platforms.

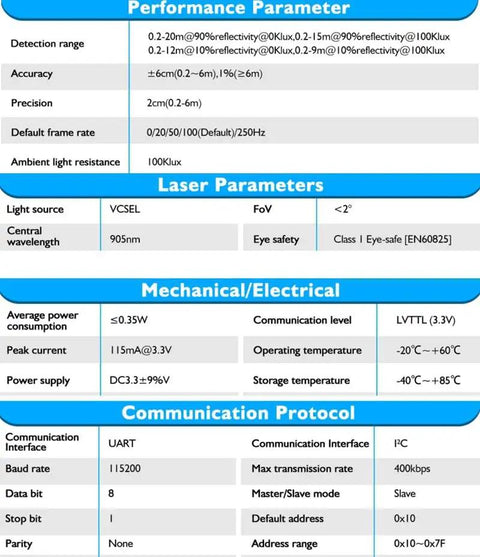

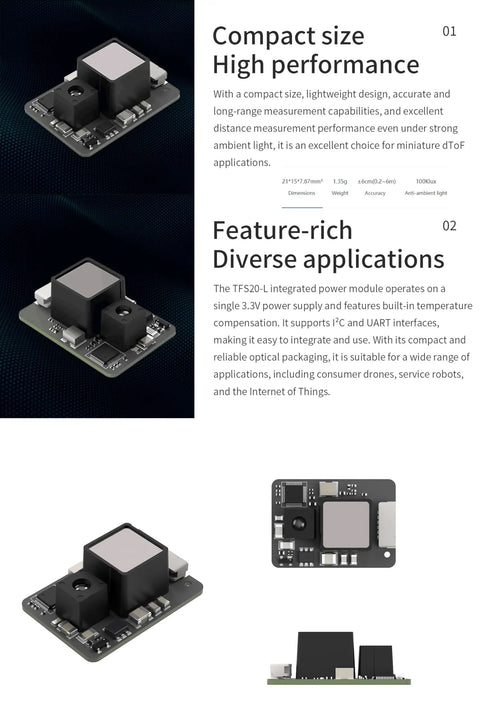

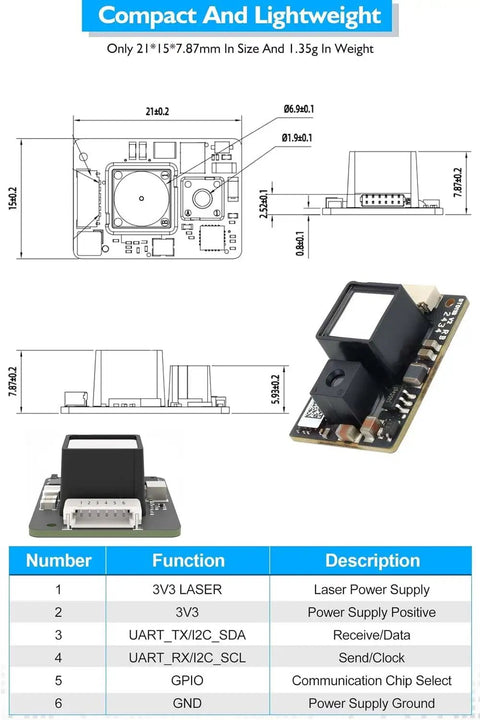

✅ Size: 21 x 15 x 7.87 mm; Weight: 1.35 g; Accuracy: ±6 cm (0.2-6 m)
✅ Range: up to 20 m, single-channel DToF rangefinder
✅ Interfaces: I2C and UART, 3.3 V supply, built-in temperature compensation
✅ SPAD-based sensor with sunlight resistance up to 100 klux; reflectivity correction
💡 What is a lidar sensor used for in drones and robots? This handy tool helps you measure distances for safe navigation and mapping.
- Distance sensing for obstacle avoidance and autonomous flight
- Real-time ranging for SLAM and terrain mapping
- Easy integration with Arduino, Raspberry Pi, and Pixhawk SDK
- Lightweight, low-power design ideal for micro-drones
