UL325 Thru-Beam Photoeye Kit For Gates And Doors With 5 To 115 Ft Range IP65 Detachable Transmitter And Receiver Four Monitoring Interfaces Including NC 10K Two-Frequency And Three-Frequency Pulse

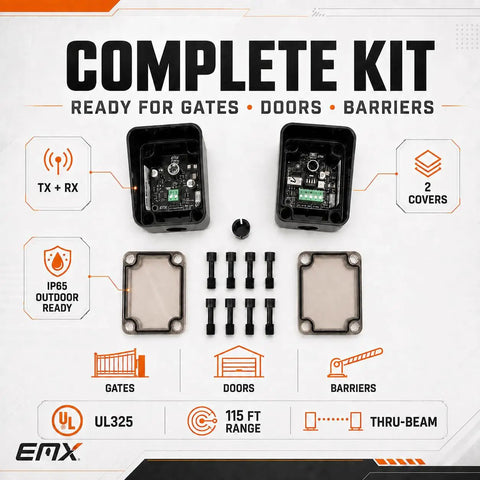

✔️ Kit includes transmitter and receiver, 5-115 ft range, four interfaces

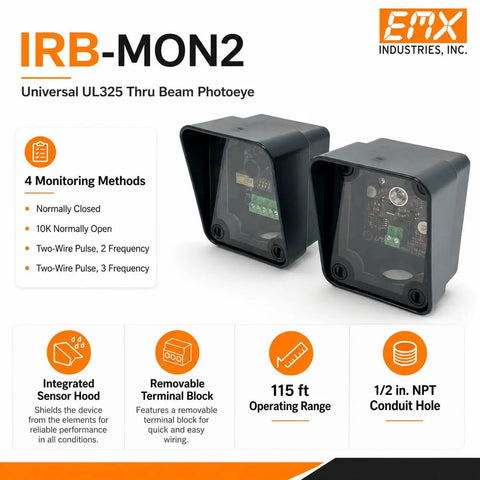

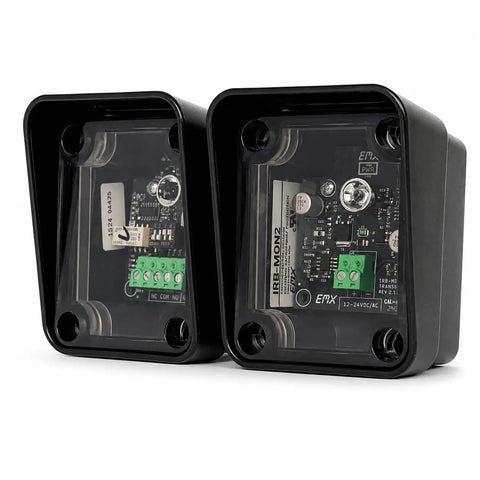

Universal UL325-compliant thru-beam infrared photoeye for gates, overhead doors, and parking barriers. This Type B1 non-contact external entrapment protection device uses separate transmitter and receiver to provide a 5-115 ft operating range and supports four monitored interfaces: Normally Closed, 10K, two-frequency pulse, and three-frequency pulse. The receiver offers an alignment indicator, adjustable sensitivity, detachable screw terminals, an integrated hood, and a removable sunshield. The IP65 enclosure allows indoor or outdoor installations and power input is 6-35 VDC or 12-24 VAC; two-wire pulse monitoring requires DC power.

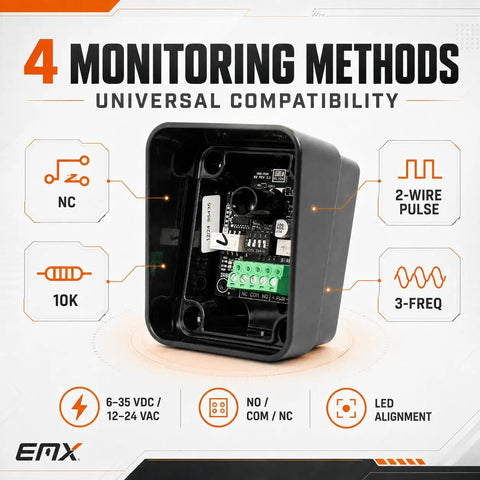

✅ Four monitored interfaces: NC, 10K, two-frequency pulse, three-frequency pulse
✅ Separate transmitter and receiver provide a 5-115 ft operating range
✅ IP65 enclosure, -40°F to 170°F operation, 6-35 VDC or 12-24 VAC power

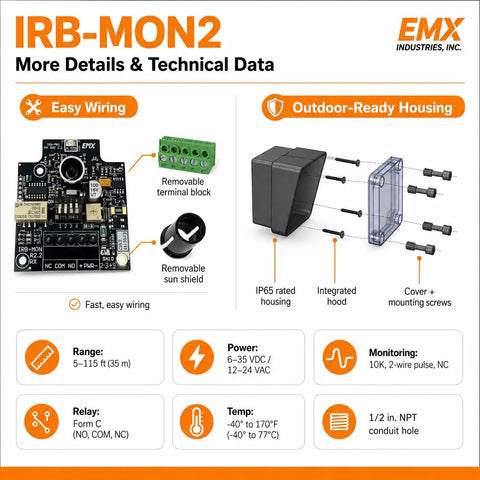

✅ Detachable screw terminals, alignment indicator, sunshield and hood
💡 What is a UL325 thru-beam photoeye kit used for in gate safety? This handy device helps stop moving gates when the beam is interrupted. - How it works: detects obstructions along the beam path between transmitter and receiver - Interfaces and power: four monitored interfaces, 6-35 VDC or 12-24 VAC - Safety compliance: UL325 compliant and IP65 rating support indoor/outdoor use
✝️
