UKS2 Plus Ebike Display With USB Port For BBS01 BBS02 BBSHD Mid Drive Motors, 0 To 9 Pedal Assist Levels, E Bike Computer, Backlit Meter Panel, UART Protocol, ABS Style Readouts, Clear Day Visibility
✔️ Left-side 22.2mm install, IP65 waterproof, 0-9 PAS, USB port, 1pc

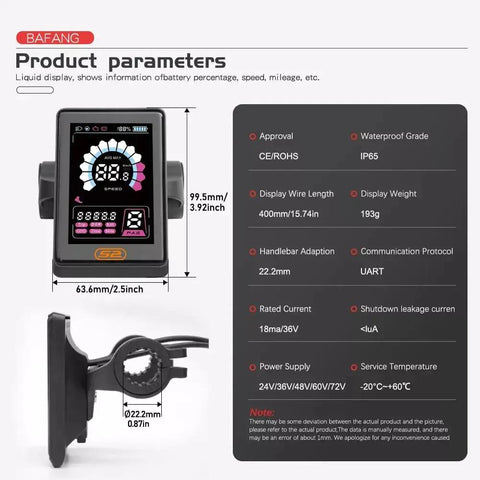

The display is a compact Ebike instrument designed for BAFANG mid-drive systems (BBS01/BBS02/BBSHD) using UART 5.0-5.8 protocol. It is used on mountain, commuter, and cargo e-bikes to monitor speed, trip distance, battery status, and power in daylight or at night.
✅ Compatible with BAFANG BBS01 BBS02 BBSHD mid-drive motors via UART 5.0-5.8 protocol
✅ 0-9 pedal assist levels for fine control
✅ Power supply: 24V/36V/48V/60V/72V
✅ USB charging port: 500mA/5V
✅ IP65 waterproof; weight 193 g; 1W rated power, 5W max
✅ 5-pin waterproof interface; 22.2mm handlebar mount

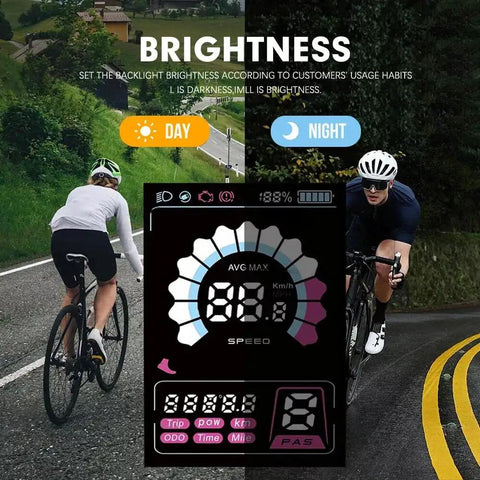

✅ Backlight brightness level 1-5; speed, trip, ODO, battery readouts
✅ Operating temp: -20 to 70 °C; storage -30 to 80 °C
💡 What is an eBike display with UART protocol used for, and why is it handy?
It provides quick real-time data for riders and supports system diagnostics.
- Real-time speed, trip distance, odometer, and battery indicators- UART 5.0-5.8 protocol compatibility with BBS01/BBS02/BBSHD mid-drive motors
- USB charging port to power devices on the go
- Adjustable backlight brightness for day and night visibility
✝️
