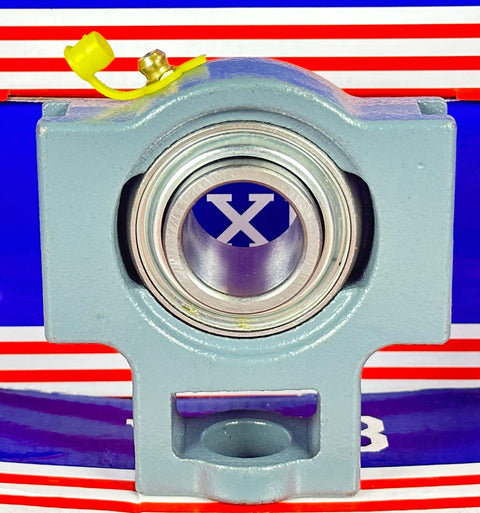

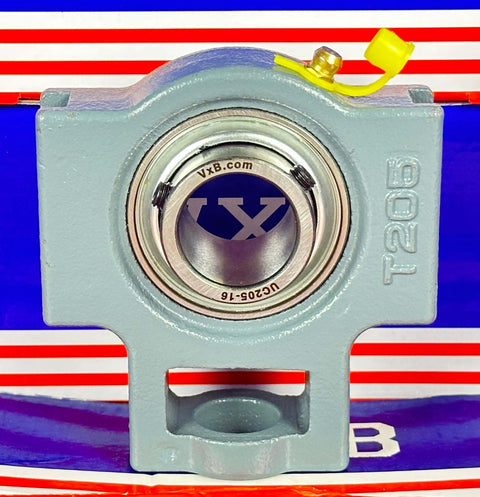

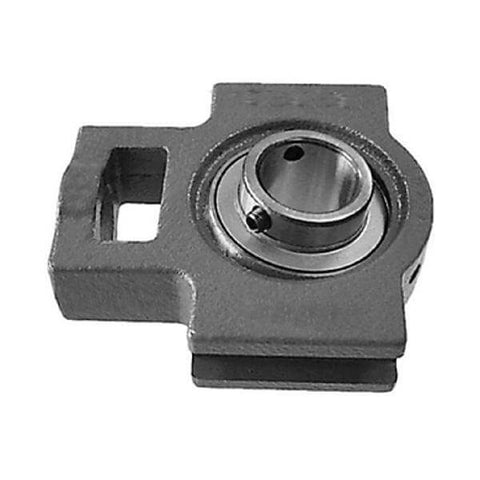

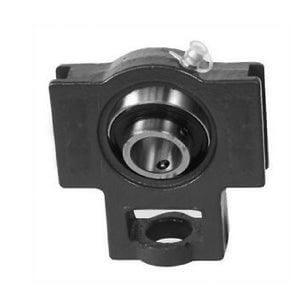

UCT205-16 1" Bore Mounted Bearing Take-Up Unit
$29.99
SKU: UCT205-16-MOUNTED-BEARING
UPC: 00193019333587
UPC: 00193019333587
Item: UCT205-16 Bearing
Type: Take Up Mounted Bearing
Basic Load (Cr): 14.0 KN
Basic Load (Cor): 7.85 KN
Type: Take Up Mounted Bearing
Basic Load (Cr): 14.0 KN
Basic Load (Cor): 7.85 KN
| UCT205-16 Bearing Take Up Mounted Bearing Cylindrical bore (with set screws) 1" Inner Diameter Bearing |
The take-up unit fits into a take-up frame and allows for linear adjustment along the plane of the unit. Both international and domestic slot versions are available.Applications is Belt conveyor, bearing is used where the shaft distance must be adjusted.
|

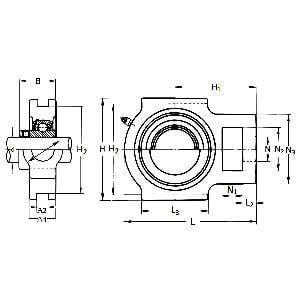

| Dimensions (Inches) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | A | A1 | A2 | H | H1 | H2 | L | L1 | L2 | L3 | N | N1 | N2 | B | S |
| 1" | 1-1/4" | 15/32" | 15/16" | 3-1/2" | 2-63/64" | 2" | 2-13/16" | 2-7/16" | 13/32" | 2" | 3/4" | 5/8" | 1-1/4" | 1.343" | 0.563" |
