UCPH210 Bearing 50mm Pillow Block Mounted Bearings
$64.99
SKU: UCPH210
UPC: 00193019333525
UPC: 00193019333525
Item: UCPH210 Bearing
Type: high centerheight pillow unit
Bolt Size: M16
Basic Load (Cr): 35.1 KN
Basic Load (Cor): 23.3 KN
Type: high centerheight pillow unit
Bolt Size: M16
Basic Load (Cr): 35.1 KN
Basic Load (Cor): 23.3 KN

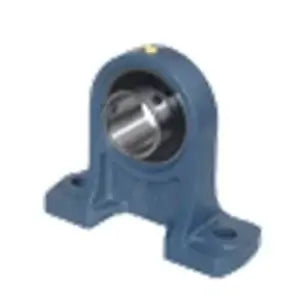

| UCPH210 Bearing Pillow Block Bearing Cylindrical bore (with set screws) 50mm Inner Diameter Bearing |
|
This unit is the high centerheight pillow type unit, It has a great resistance to impact loads. It is a suitable for machinery where greater base to center heights are required.Applications are Printing machinery and spinneret.
|

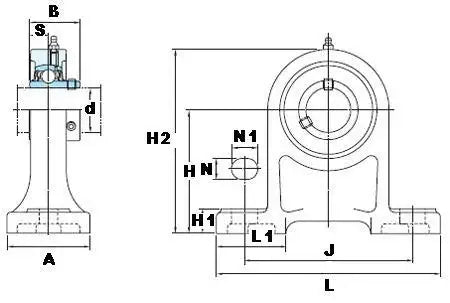

| Dimensions (mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | H | L | A | J | N | N1 | H1 | H2 | L1 | B | S |
| 50 | 110 | 206 | 70 | 159 | 20 | 22 | 22 | 165 | 65 | 51.6 | 19 |
