UCPH210-32 Bearing 2" Pillow Block Mounted Bearings
Title
$55.99
SKU: UCPH210-32
UPC: 00193019333556
UPC: 00193019333556
Item: UCPH210-32 Bearing
Type: high centerheight pillow unit
Bolt Size: 5/8
Basic Load (Cr): 35.1 KN
Basic Load (Cor): 23.3 KN
Type: high centerheight pillow unit
Bolt Size: 5/8
Basic Load (Cr): 35.1 KN
Basic Load (Cor): 23.3 KN
UCPH210-32 Bearing Pillow Block Bearing Cylindrical bore (with set screws) 2" Inner Diameter Bearing |
This unit is the high centerheight pillow type unit, It has a great resistance to impact loads. It is a suitable for machinery where greater base to center heights are required.Applications are Printing machinery and spinneret.
|

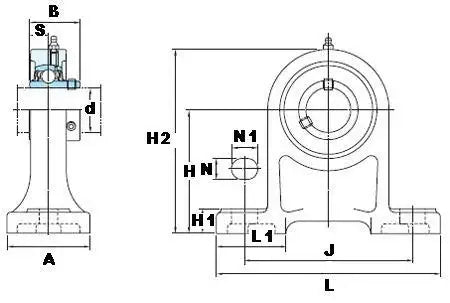

Dimensions (Inches) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
d | H | L | A | J | N | N1 | H1 | H2 | L1 | B | S |
2" | 4-21/64" | 8-1/8" | 2-3/4" | 6-1/4" | 25/32" | 7/8" | 7/8" | 6-1/2" | 2-9/16" | 2.031" | 0.748" |
