VXB

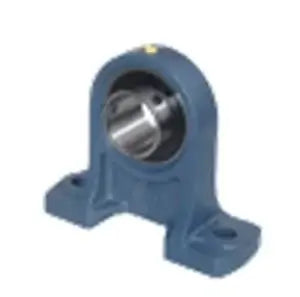

UCPH209-28 Bearing 1 3/4" Pillow Block Mounted Bearings
Regular price
$50.99
| UCPH209-28 Bearing Pillow Block Bearing Cylindrical bore (with set screws) 1-3/4" Inner Diameter Bearing |
|
This unit is the high centerheight pillow type unit, It has a great resistance to impact loads. It is a suitable for machinery where greater base to center heights are required.Applications are Printing machinery and spinneret.
|

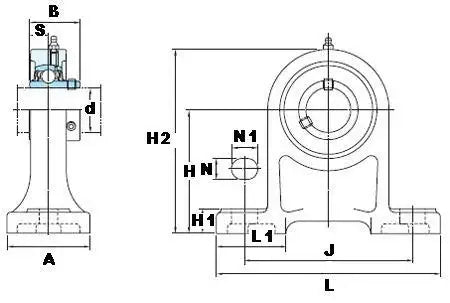

| Dimensions (Inches) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | H | L | A | J | N | N1 | H1 | H2 | L1 | B | S |
| 1-3/4" | 4-9/64" | 7-15/32" | 2-3/4" | 5-3/4" | 21/32" | 13/16" | 25/32" | 6-7/32" | 2-9/32" | 1.937" | 0.748" |
