VXB

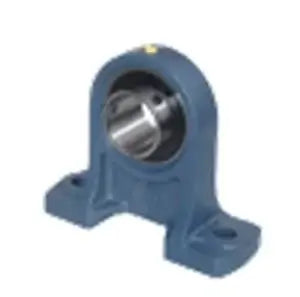

UCPH209-27 Bearing 1 11/16" Pillow Block Mounted Bearings
$51.99
SKU: UCPH209-27
UPC: 00193019333501
UPC: 00193019333501
Item: UCPH209-27 Bearing
Type: high centerheight pillow unit
Bolt Size: 1/2
Basic Load (Cr): 34.1 KN
Basic Load (Cor): 21.3 KN
Type: high centerheight pillow unit
Bolt Size: 1/2
Basic Load (Cr): 34.1 KN
Basic Load (Cor): 21.3 KN
| UCPH209-27 Bearing Pillow Block Bearing Cylindrical bore (with set screws) 1-11/16" Inner Diameter Bearing |
|
This unit is the high centerheight pillow type unit, It has a great resistance to impact loads. It is a suitable for machinery where greater base to center heights are required.Applications are Printing machinery and spinneret.
|

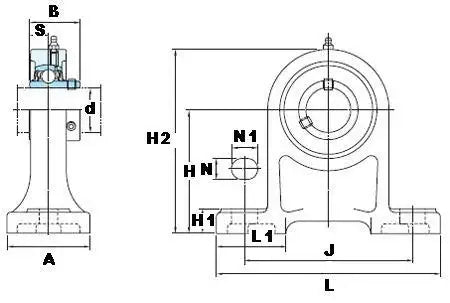

| Dimensions (Inches) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | H | L | A | J | N | N1 | H1 | H2 | L1 | B | S |
| 1-11/16" | 4-9/64" | 7-15/32" | 2-3/4" | 5-3/4" | 21/32" | 13/16" | 25/32" | 6-7/32" | 2-9/32" | 1.937" | 0.748" |
