UCFL320 FYH Flanged Mounted Bearing 100mm Bore With Two Bolts Cast Housing Cylindrical Bore With Set Screws 100mm Inner Diameter UCFL320 Bearing For Industrial Machinery And Equipment

UCFL320 FYH 100mm Flanged Mounted Bearing with Cast Housing
✔️ 100 mm bore, two-bolt flange, cast housing UCFL320

The UCFL320 FYH bearing is a sealed, flange-mounted unit with a 100 mm bore and a cast housing. It's built for reliable support in industrial machines, conveyors, and automated equipment where sturdy, easy-to-install shaft guidance is key.

✅ Inner diameter: 100 mm
✅ Bolt size: M39, two-bolt flange
✅ Basic static load Cr: 173 kN
✅ Basic dynamic load Cor: 141 kN
✅ Bearing number UCFL320
✅ Quantity: 1 bearing

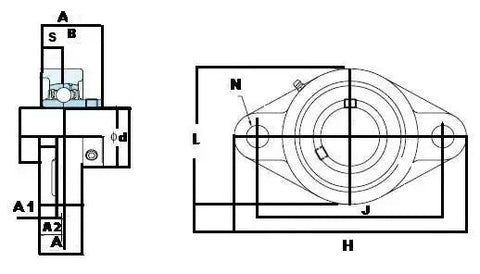

✅ Dimensions (mm): d 100, H 440, L 270, A 94, J 360, N 44, A1 40, A2 59, A0 125, B 108, S 42

💡 What is a UCFL320 flange mounted bearing used for in heavy machinery and automation? A compact, strong option for reliable shaft support.

• Handy for quick mounting and precise shaft alignment in conveyors and packaging lines
• Sealed, grease-retained design reduces maintenance and downtime
• Provides strong radial support with a 100 mm bore and cast housing
