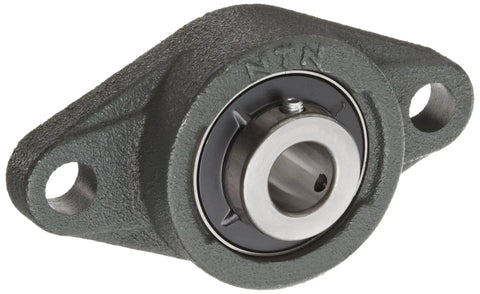

UCFL Series Lite Duty Flange Ball Bearing Unit With 2 Bolt Holes Setscrew Lock Pressed Steel Closed End Cover Cast Iron Housing And Contact Flinger Seals For Smooth Operation And Reliable Moderate Radial Load Support
✔️ Single bearing unit with two-bolt flange mount and dust cover sealed
The UCFL series light-duty flange ball bearing unit is designed for mounting onto bearing surfaces perpendicular to the shaft axis. The one-piece gray cast iron housing provides rigidity and vibration damping, with a solid base for stable mounting. The double-sealed radial ball bearing insert offers moderate radial loads and light thrust or combination loads, with a wide inner ring for shaft support and reduced inner-ring tilt for smooth operation. This self-aligning bearing has a convex sphered outer surface that compensates for misalignments. Steel-reinforced molded rubber lip seals on both sides of the bearing retain lubricant applied at manufacture and help keep contaminants out. For added protection, flingers on the inner ring deflect contaminants away from the seals. The bearing locks onto the shaft with two ball-point setscrews spaced 120 degrees apart for a three-point contact hold. The semi-retractable ball makes point contact with the shaft, minimizing shaft damage and creating a tight hold under shock or vibration loads. This lock type is suitable for low to moderate speed applications where the shaft rotates in a single or reversing direction. This bearing unit comes with a closed-end pressed steel dust cover with a greased double rubber seal. The cover protects the bearing and shaft end in applications with high dust levels or splashes of liquid, such as conveyors or steel mills. Flanged bearing units are suitable for use in industrial and commercial applications including conveyors, fans and blowers, construction machinery, and processing equipment, among many others.
✅ Cast iron housing with a solid base for vibration damping and mounting stability
✅ Light-duty double-sealed radial ball bearing insert with a wide inner ring for moderate radial loads
✅ Synthetic rubber lip seals and flingers protect lubricant and block contaminants
✅ Ball-point setscrew lock creates a three-point contact on the shaft
✅ Pressed steel dust cover with a closed end provides extra protection against dust and liquids
💡 What is a flange bearing unit used for in industrial machinery and conveyors? This handy shaft support helps keep equipment running smoothly by maintaining shaft alignment in moderate-load setups.
- Supports conveyors, fans, blowers, and processing lines with straightforward mounting
- Maintains shaft alignment under moderate radial and light axial loads
- Sealed lubrication reduces maintenance and contamination risk
