VXB

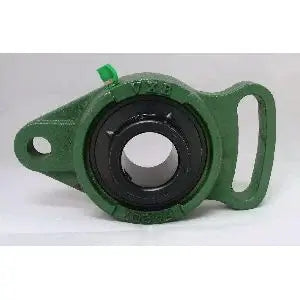

UCFA202-10 Black Oxide Plated Insert Flange Cartridge Bearing Unit 5/8" Bore Mounted Bearings
$54.99
SKU: UCFA202-10-BLACK
UPC: 00193019332641
UPC: 00193019332641
Item: UCFA202-10 Black Oxide Plated Insert Bearing + Flange housing
Type: Flange Cartridge Unit
Basic Load (Cr): 12.8 KN
Basic Load (Cor): 6.65 KN
Bolt Size: 5/16
Type: Flange Cartridge Unit
Basic Load (Cr): 12.8 KN
Basic Load (Cor): 6.65 KN
Bolt Size: 5/16
| UCFA202-10 Black Oxide Plated Insert Flange Cartridge Unit 5/8" Inner Diameter |
|
UCFA202-10 Black Oxide Plated Insert Flange Cartridge Unit, the inner Diameter is 5/8" inch. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance
|

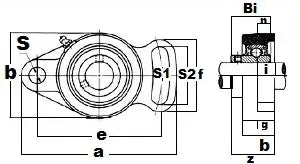

| Dimensions (Inches) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| a | e | i | g | S | S1 | S2 | b | f | z | Bi | n |
| 4-1/64" | 3-1/16" | 19/32" | 15/32" | 25/64" | 25/64" | 1-27/64" | 2-3/8" | 2-1/8" | 15/16" | 1-7/32" | 1/2" |
