UCF-208-24 Flange Mounted Bearing - 1-1/2" ID - 4-Bolt Square Flange
UPC: 00193019042779
Type: Flange Mounted Bearing
Bolt Size: 3/8" inch
Shaft Diameter: 1 1/2" inch
Basic Load (Cr): 29.1 KN
UCF-208-24 Flange Mounted Bearing
✔️ 1-1/2" ID - 4-Bolt Square Flange - Set Screw Locking
The UCF-208-24 is a heavy-duty mounted bearing unit with a 1-1/2" inner diameter and a 4-bolt square flange housing. Featuring a set screw locking style, it's built for reliable performance in machinery, conveyors, and agricultural or industrial systems where strong shaft support is needed.
✅ Inner diameter (shaft): 1-1/2"
✅ Bearing number: UC208-24
✅ Housing number: F208
✅ Mount style: 4-bolt square flange
✅ Locking method: Set screw
✅ Bolt hole size: 3/8"
✅ Dynamic load rating (Cr): 29.1 kN
✅ Static load rating (Cor): 17.8 kN
✅ Pack size: 1 complete unit (bearing + housing)

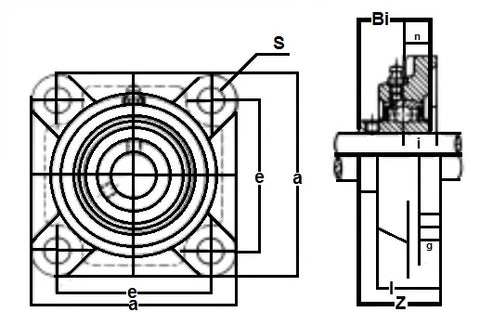

Dimensions Table:
Dimension | Value | Dimension | Value |
---|---|---|---|
a | 5-1/8" | e | 4-1/64" |
i | 53/64" | g | 5/8" |
l | 1-13/32" | s | 5/8" |
z | 2-1/64" | Bi | 1.937" |
n | 3/4" |
💡 What makes flange-mounted bearings ideal for support in stationary machinery?
Flange-mounted bearings like the UCF-208-24 offer stable, rigid support for rotating shafts. Their square base and 4-bolt mount make alignment easy and reliable, while the set screw locking secures the shaft in place during heavy use.
