VXB
UC211-32 Black Oxide Plated Insert 2" Inch Bore Mounted Bearing
$116.99
SKU: UC211-32-BLACK
UPC: 00193019332054
UPC: 00193019332054
Item: UC211-32 Bearing Insert
Type: Black oxide Plated Bearing insert
Shaft Diameter: 2" Inch
Dynamic Load Rating: 43503 N
Static Load Rating: 29670 N
Type: Black oxide Plated Bearing insert
Shaft Diameter: 2" Inch
Dynamic Load Rating: 43503 N
Static Load Rating: 29670 N
| UC211-32 Black Oxide Plated Bearing Insert Set Screw Locking 2" Inch Inner Diameter |
|
UC211-32 Black Oxide Plated insert , Bearing is standard duty, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing is nylon patched class 3A set screw, Standard seal is R-Seal. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.
|

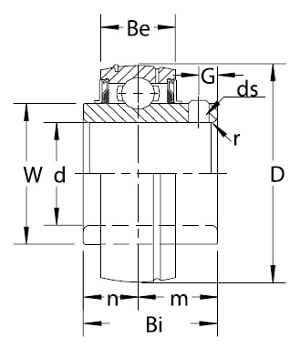

| Dimensions (Inches) | ||||||||
|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | r | n | m | G | W | ds(UNF-Thread) |
| 3-15/16" | 2-3/16" | 63/64" | 0.098" | 7/8" | 1.315" | 3/8" | 2-3/4" | 3/88-24x3/8 |
