UC210-31 Black Oxide Plated Plated Insert 1 15/16 Bore Bearing
$72.99
SKU: Kit15370
UPC: 00193019221273
UPC: 00193019221273
Item: UC210-31 Black Bearing
Type: Oxide Plated Insert Ball Bearing
Shaft Diameter: 1 15/16" inch
Dynamic load rating: 35052 N
Static load rating: 20684 N
Type: Oxide Plated Insert Ball Bearing
Shaft Diameter: 1 15/16" inch
Dynamic load rating: 35052 N
Static load rating: 20684 N
|
UC210-31 Black Oxide Plated Insert Ball Bearing 1 15/16" inch Inner Diameter |
|
UC210-31-Black Oxide Plated Insert Ball Bearing, bearing is wide inner ring with spherical outer ring, bearing is rel ubrication groove with oil hole on set screw side, bearing is anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A set screws.
|

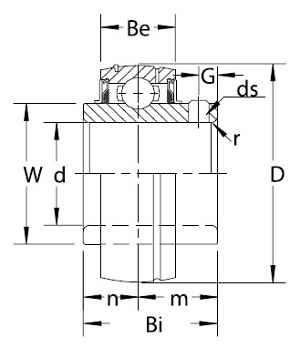

| Dimensions (inches) | ||||||||
|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | r | n | m | G | W | ds(Unf-Thread) |
| 3-35/64" | 2-1/32" | 0.866" | 5/64" | 3/4" | 1-9/32" | 3/8" | 2.445" | 3/8-24x3/8 |
