VXB
UC209-26 Black Oxide Plated Plated Insert 1 5/8 Bore Bearing
$62.99
SKU: Kit15364
UPC: 00193019221211
UPC: 00193019221211
Item: UC209-26 Black Bearing
Type: Oxide Plated Insert Ball Bearing
Shaft Diameter: 1 5/8" inch
Dynamic load rating: 32694 N
Static load rating: 18460 N
Type: Oxide Plated Insert Ball Bearing
Shaft Diameter: 1 5/8" inch
Dynamic load rating: 32694 N
Static load rating: 18460 N
|

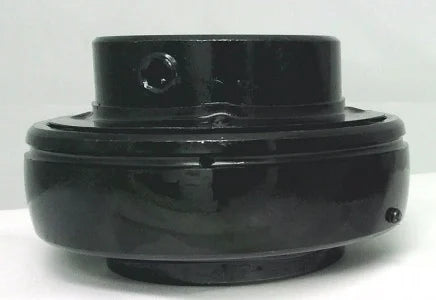

UC209-26 Black Oxide Plated Insert Ball Bearing 1 5/8" inch Inner Diameter |
|
UC209-26 Black Oxide Plated Insert Ball Bearing, bearing is wide inner ring with spherical outer ring, bearing is re lubrication groove with oil hole on set screw side, bearing is anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A set screws.
|

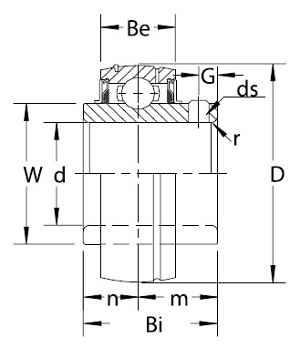

| Dimensions (inches) | ||||||||
|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | r | n | m | G | W | ds(Unf-Thread) |
| 3-11/32" | 1-15/16" | 0.866" | 5/64" | 3/4" | 1-3/16" | 0.315" | 2-17/64" | 5/16-24x5/16 |
