UC206-30mm Bearing Insert 30mm Mounted

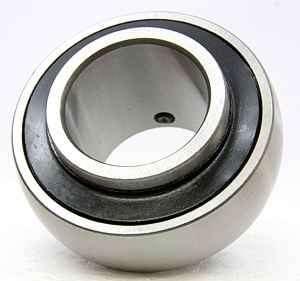

UC206-30mm bearing insert with set screw locking
✔️ UC206 wide inner ring insert bearing for 30mm shafts
This single UC206-30mm bearing insert is a handy option for mounted units and machinery that needs a secure shaft fit with easy relubrication. It features a wide inner ring, a spherical outer ring for self-alignment, nylon patched set screws, and an R-seal to help keep things clean during operation.
✅ Shaft diameter: 30mm
✅ Wide inner ring with spherical outer ring
✅ Set screw locking
✅ Relubrication groove with oil hole
✅ Standard seal: R-seal
✅ Dynamic load rating: 19438 N
✅ Static load rating: 10320 N
✅ Pack size: 1 bearing

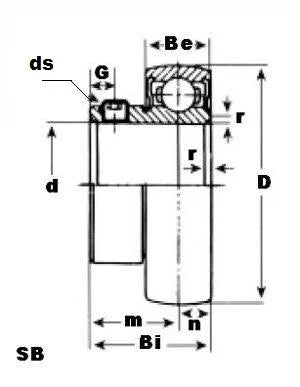

Dimensions table (mm):
| Feature | Value |
|---|---|
| Outer Diameter (D) | 52 |
| Inner Width (Bi) | 34 |
| Outer Width (Be) | 15 |
| Radius (r) | 1.5 |
| Set Screw Distance (n) | 14.3 |
| Collar Width (m) | 19.7 |
| Grease Groove Width (G) | 5.5 |
| Overall Width (W) | 33.7 |
| Set Screw Thread (ds) | M6 x P1.0 |
💡 Why choose a bearing insert with a spherical outer ring in mounted applications?
It allows the bearing to self-align and stay steady under real-world conditions.
-
Helps compensate for slight housing misalignment
-
Set screw locking keeps the shaft secure during operation
-
Relubrication design supports longer service life
A solid choice when you want easy mounting, secure shaft grip, and smooth running in your equipment.
