VXB

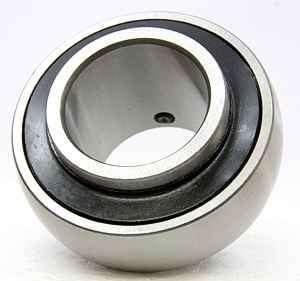

UC204-20mm Bearing Insert 20mm Mounted
$25.99
SKU: Kit18954
UPC: 00193019267363
UPC: 00193019267363
Item: UC204-20mm Bearing
Type: Cylindrical Carttridge Ball Bearing
Shaft Diameter: 20mm
Dynamic Load Rating: 12900 N
Static Load Rating: 6272 N
Type: Cylindrical Carttridge Ball Bearing
Shaft Diameter: 20mm
Dynamic Load Rating: 12900 N
Static Load Rating: 6272 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
UC204-20mm Bearing Insert Set Screw Locking 20mm Inner Diameter |
UC204-20mm Bearing Insert, Bearing is standard duty, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

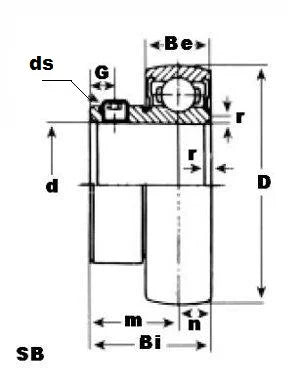

| Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | r | n | m | G | W | ds(UNF-Thread) |
| 47 | 31 | 16 | 1 | 12.7 | 18.3 | 5 | 28.7 | M6xP1.0 |
