Type C Female Test Board Socket With Bent Pins 16 Pin 2.54 Pitch USB 3.1 Data Transfer Connector Kit For PCB Debugging And Quick Prototyping 10 Pack Bundle

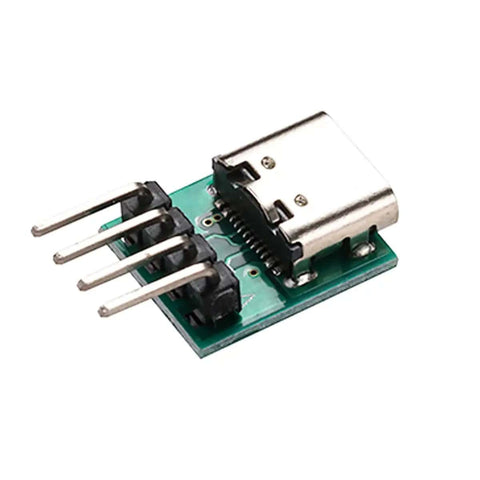

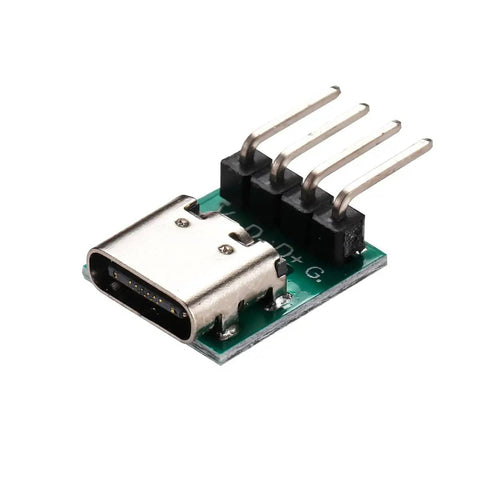

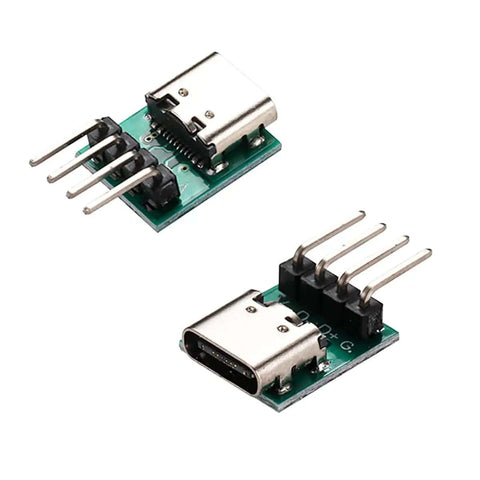

✔️ 16-pin Type-C female socket with bent pins, 2.54 mm pitch
These Type-C female test boards are compact sockets with bent pins designed for quick prototyping and PCB debugging. Built on FR-4 glass fiber panel, the 16-pin module helps you validate USB-C connections in tight spaces during development.
| Dimension | Value |
|---|---|

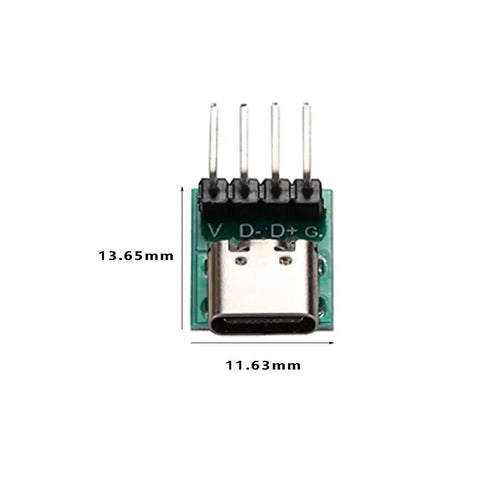

| Board size | 11.63 mm × 13.65 mm |
| Pin count | 16 pins |
| Pitch | 2.54 mm |
| Aperture | 1.0 mm |
| Board thickness | 1.0 mm |
| Material | FR-4 glass fiber |
✅ 16-pin Type-C female socket on FR-4 panel, green
✅ 2.54 mm pitch for easy header alignment
✅ Compact panel size 11.63 mm × 13.65 mm, 1.0 mm aperture, 1.0 mm thickness

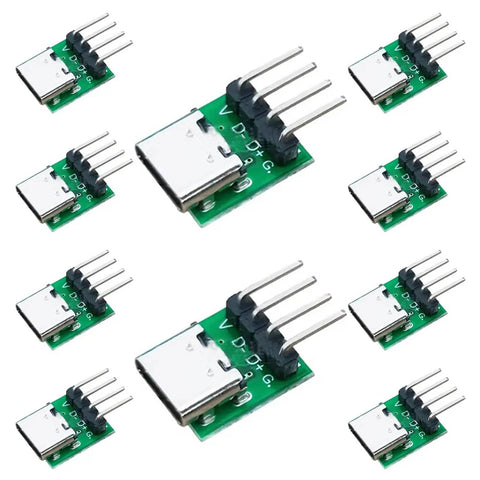

✅ 10-piece pack bundles for quick prototyping
💡 What is the best way to use a USB-C Type-C test board for PCB prototyping? This handy tool helps engineers validate designs quickly and safely. - handy for USB-C data-transfer testing on prototypes - quick PCB debugging with a compact 11.63x13.65 mm board - bent-pin design enables temporary connections without soldering - 2.54 mm pitch matches standard headers and breakout boards
