Two Way Pneumatic Manifold Air Distribution Block With G1/2 Inlet Ports And G1/4 Outlet Ports Aluminum Alloy Construction Heavy Duty High Pressure Tolerance Corrosion Resistant Lightweight Ideal For Air Tools And Systems
✔️ 2x G1/2in inlets, 2x G1/4in outlets, aluminum alloy, NPT threads

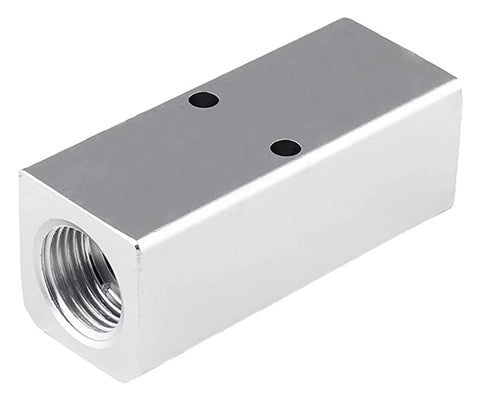

This compact air distribution block is built from aluminum alloy, delivering a sturdy, corrosion-resistant solution for splitting compressed air in two paths. It’s commonly used with air tools, compressors, cylinders, vacuum systems, and other pneumatic setups in workshops and light-industrial environments. The dual G1/2" inlets and two G1/4" outlets enable easy sharing of a single supply across two circuits, while standard port sizes simplify mounting and integration.

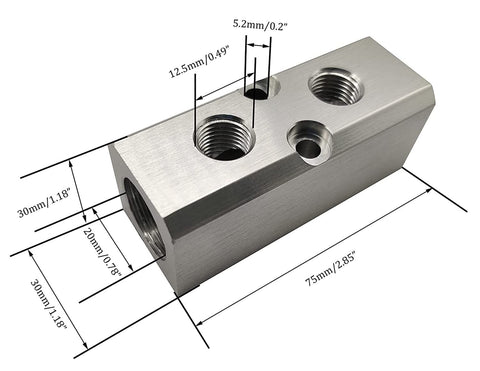

| Specification | Value |
|---|---|
| Inlet Port Diameter | G1/2 (20 mm) |
| Outer Port Diameter | G1/4 (12.5 mm) |
| Total Size | 75 x 30 x 30 mm (2.95" x 1.18" x 1.18") |
| Mounting Port Diameter | 5.2 mm |
✅ Material: Aluminum alloy, corrosion-resistant

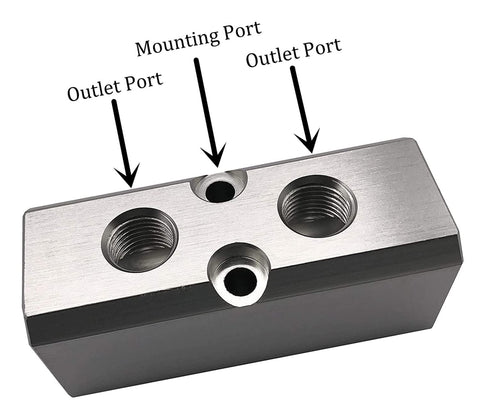

✅ Ports: 2x G1/2in inlets, 2x G1/4in outlets; NPT-threaded ports for tight seals
✅ Size: 75x30x30 mm footprint (2.95x1.18x1.18 in)
✅ Mounting: 5.2 mm mounting hole diameter for easy installation
✅ Applications: air tools, compressors, cylinders, vacuum systems and automation equipment
💡 What is a two-way pneumatic manifold used for in a compact industrial air system?
It’s handy for splitting airflow to two lines while keeping a compact, leak-resistant setup.
- How it helps with mounting and sealing - Why aluminum alloy improves corrosion resistance - Where to connect in standard port configurations
