Two Axis DRO Kit With Digital Readout For CNC Milling Machines And Metal Lathes 350mm And 700mm Linear Scales High Precision Encoder Display Included Manual For Pro Grade Machining

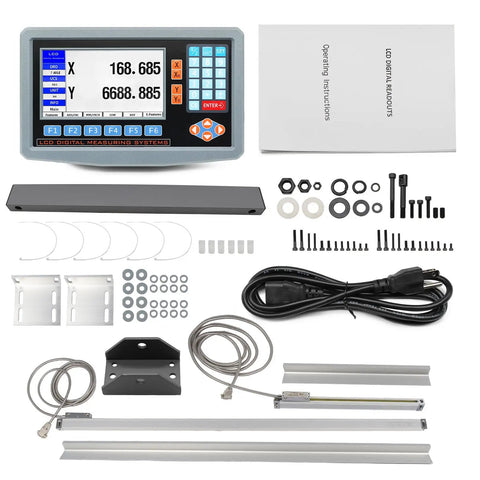

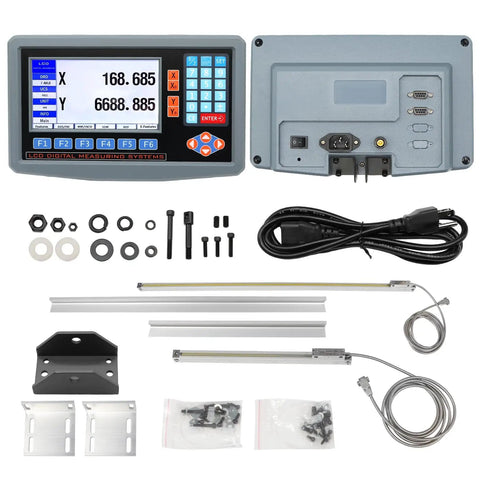

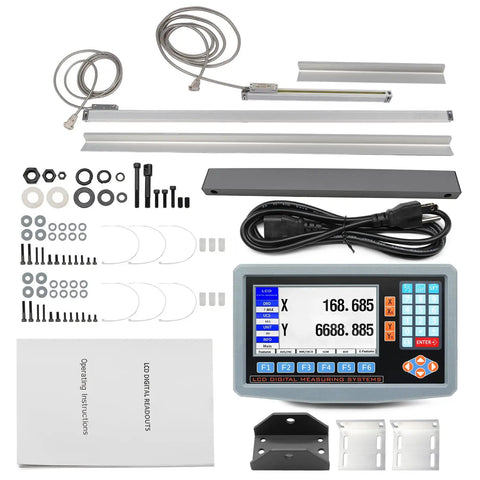

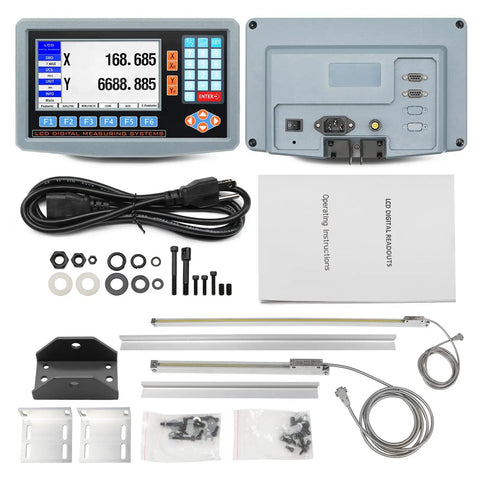

2-Axis DRO Readout Kit for CNC Milling and Lathes
✔️ 350mm + 700mm linear scales, 5um resolution, TTL input

This two-axis DRO readout kit provides real-time position feedback for CNC milling machines and metal lathes, boosting precision during setup and production.

✅ Resolution: 5um
✅ Input signal: TTL square wave
✅ Power supply: AC 86V ~ 240V, 50~60Hz
✅ Operating temperature: 0~50°C
✅ Overall Length: Travel Length + 140mm

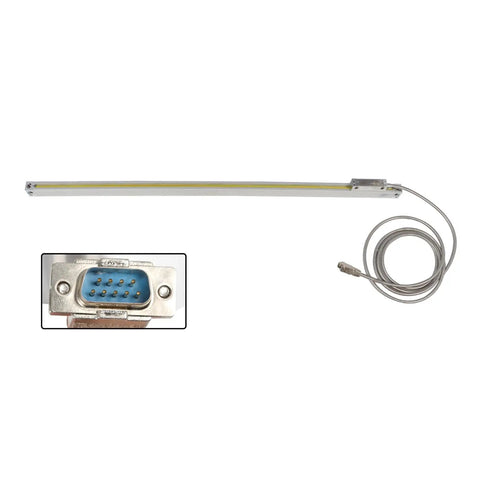

✅ Includes 350mm and 700mm scales

💡 What is a DRO kit used for in precision machining and how does it improve workflow?

These two-axis DRO kits give real-time positioning data to the machine tool, helping operators set up parts more quickly and with tighter tolerances.

- Real-time two-axis position readout for mills and lathes - Reduces manual measurements and scrap by eliminating dial math - Works with 350mm and 700mm linear scales - 5um resolution improves measurement accuracy ✝️
