Two Axis Digital Readout DRO For Milling And Lathe Machines, 16 Inch And 38 Inch Travel, 5 Micron Precision TTL Glass Scale, 0.0002 Inch Resolution, Dual Travel 400mm Plus 950mm For Ultra Accurate Machining
✔️ Includes 1 display, 2 scales; ships in two separate boxes
This 2-axis digital readout (DRO) kit measures workpiece position during milling and turning, helping operators set up quickly and achieve precise cuts. The system uses a glass precision metrology grating for high accuracy and mounts on most machine surfaces. Note: you will receive two separate packages because the scales and display ship separately.
✅ 2-Axis digital readout display with 5um resolution and ±5um accuracy at 20°C

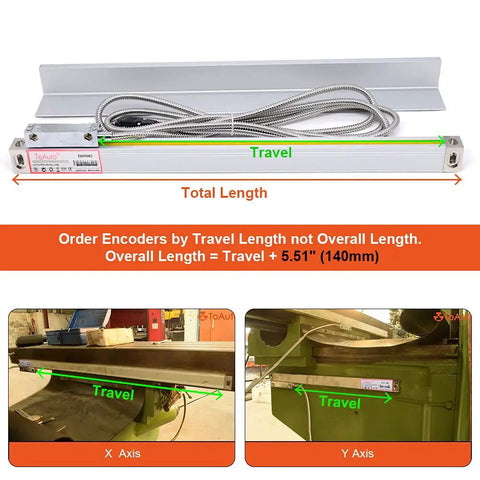

✅ Travel lengths: 400 mm + 950 mm (16" + 38"), total lengths 540 mm and 1090 mm
✅ Glass precision metrology grating, TTL input, 20um pulse period

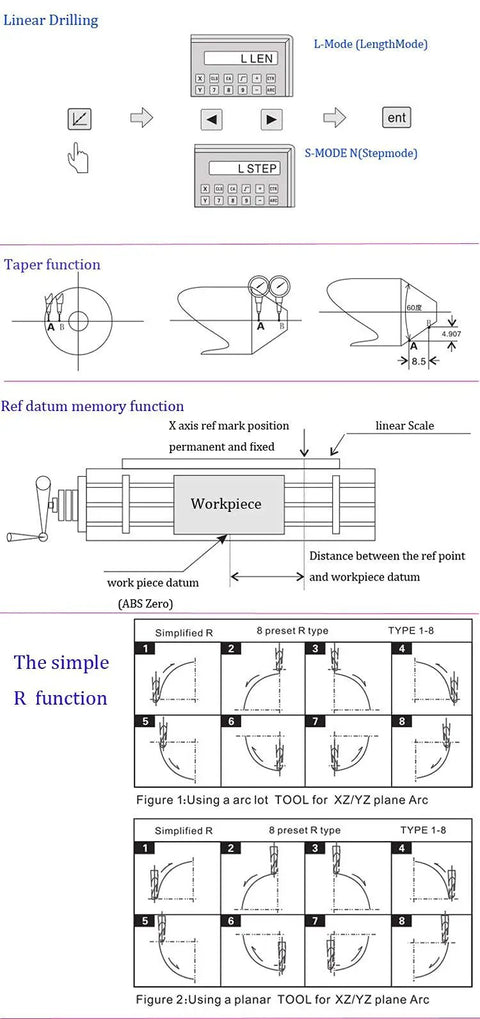

✅ 200 sets memory (SDM), power-off memory, bevel processing, oblique line drilling, 1/2 centering
✅ 0-45°C operating range; AC 80-260V, 50-60Hz; 15VA

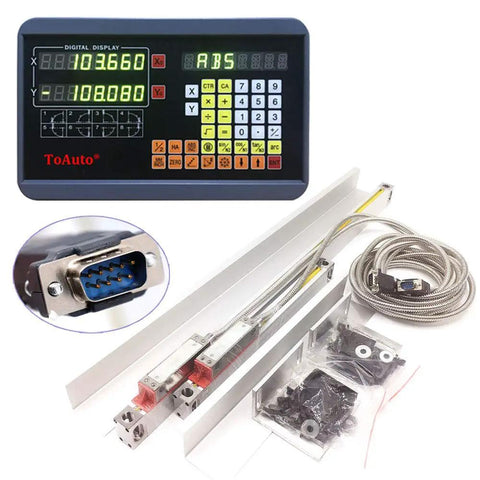

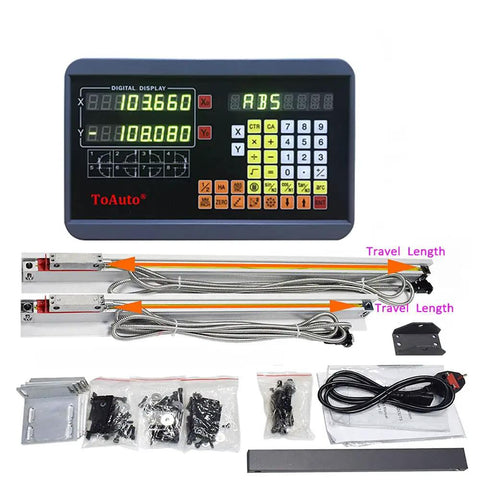

✅ Includes: display, 2 linear scales, instruction manual, L-brackets and accessories

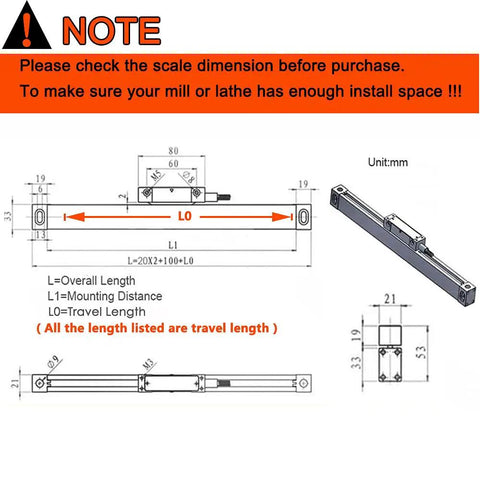

| Dimension | mm | in |
|---|---|---|
| Travel (X+Y) | 400 mm + 950 mm | 16 in + 38 in |
| Total length L0 | 540 mm | 21.26 in |
| Total length L0 | 1090 mm | 42.99 in |
💡 What is a two-axis DRO used for in precision milling and lathe work? This handy tool helps operators set up and measure quickly. - Real-time X/Y position readouts for setup and cutting - Quick return to known positions with memory and reference features - Improves accuracy and repeatability across drilling, milling, and turning
