TRKC35UU NB 35mm Slide Bush Bushings Motion Linear Bearings

$871.99
SKU: Kit21123
UPC: 00193019124307
Item: TRKC35UU NB Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 35mm
Retainer Material: steel
Quantity: One Bearing

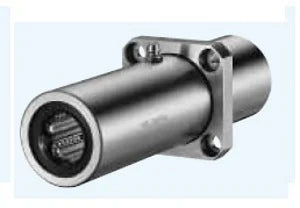

TRKC35UU NB Triple Wide Intermediate Position
Square Flange Slide Bush
Made in Japan:NB Linear Systems


TRKC35UU NB Triple Wide Intermediate Position Square Flange Miniature Slide Bush, The retainer material is steel, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • Item: TRKC35UU NB Bearing
  • Type: Linear Slide Bush
  • Bearing Inner Diameter: 35mm
  • Retainer Material: steel
  • Quantity: One Bearing
  • Dynamic Load Rating Cr: 2650 N
  • Static Load Rating Cor: 6270 N

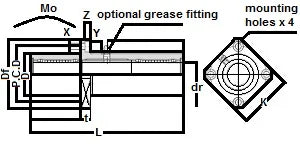

Major Dimensions
dr D L Df t P.C.D X x Y x Z
mm tolerance mm tolerance
35 0-21 60 0-30 200 96 13 78 9 x 14 x 11.1
