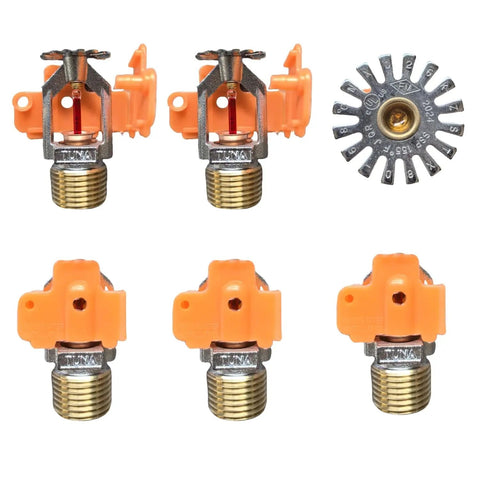

Top Shelf Quick Response Pendent Fire Sprinkler Head Chrome Edition 155 Degree Fahrenheit Heat Trigger Half Inch Npt Thread K56 Flow Rate Fm Certified And Ul Rated Bulletproof Fire Suppression Setup

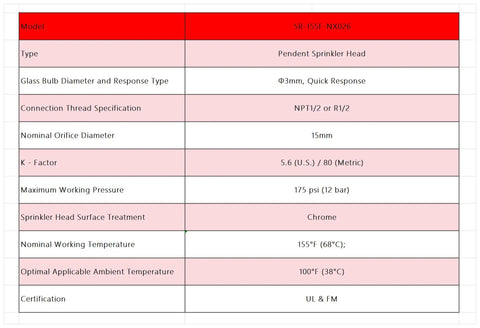

✔️ 155F activation threshold with half inch NPT fitting and K56 flow
A pendent style automatic fire suppression nozzle designed for residential and commercial indoor spaces. This drop down unit connects directly to standard ceiling pipes to deliver fast water coverage during emergencies.
✅ 3 mm glass fuse melts quickly against intense heat spikes✅ Max working pressure hits one hundred seventy five psi plus one point two MPa
✅ Hydrostatic testing confirms safety at five hundred PSI and three point four MPa
✅ Half inch (thirteen mm) threaded outlet mounts onto standard supply lines cleanly
💡 How does a quick response sprinkler head actually trigger water flow indoors?
To get the ball rolling, these ceiling mounted tubes rely on a small amount of sealed fluid that expands rapidly when it hits eighty two degrees Celsius.
- The thin glass capsule breaks open under intense heat so pressurized distribution piping can feed the nozzle immediately
- Builders love this mechanism because it is truly handy for cutting down response time before smoke fills up the room
- Using certified ball bearing designs keeps the discharge arc steady even when water pushes through at peak velocity
