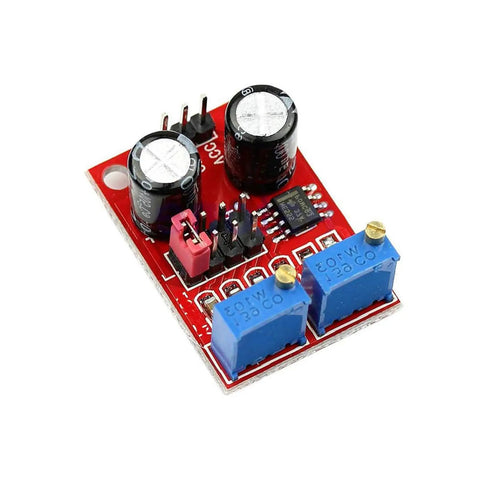

Top Shelf NE555 Pulse Waveform Generator Module With Slick Frequency And Dead On Duty Cycle Knobs For Crisp Square Signals That Run Smooth On 5V To 15V DC Power Supply For Your Next Sick DIY Electronics Build
✔️ Generates clean square waves from 1hz up to 150khz limit

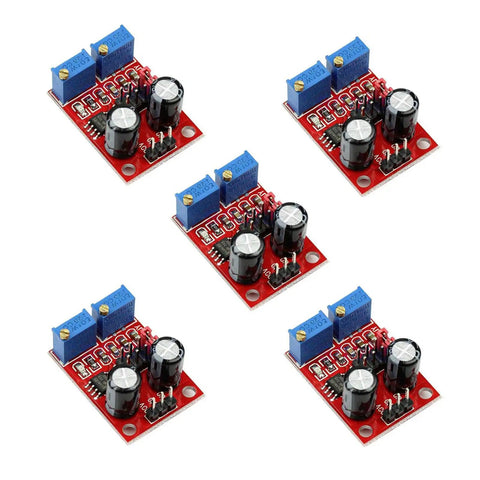

This set comes packaged with five dedicated waveform generator units tailored for steady clock signal generation in custom electronics projects. Makers typically route these compact boards into experimental setups to trigger stepper sequences, validate sensor inputs, or run diagnostic sweeps on breadboard prototypes.

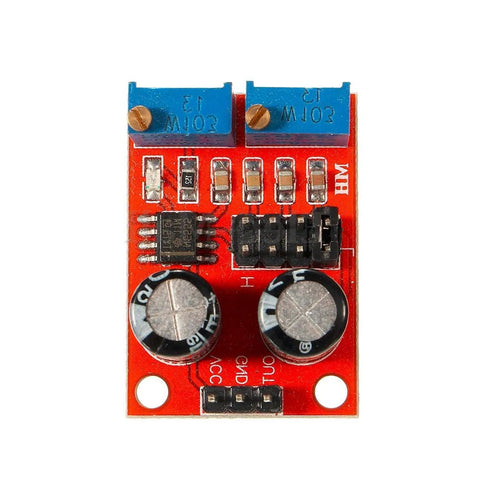

✅ Measures approximately 31mm by 24mm with secure 1.5mm terminal connectors✅ Features independent trimmers to tweak oscillation speed and pulse width
✅ Supplies strong output swings reaching close to twelve volts under load
✅ Accepts straightforward 5vdc to 15vdc input rails without extra regulation
✅ Draws minimal current while maintaining stable performance across builds
💡 What drives precise timing functions when wiring modular oscillator circuits?
The built-in comparator architecture handles rapid threshold switching so the board acts as a handy reference source for various hobbyist rigs. You bring home solid bang for your buck when integrating one into your bench work:
- Dual variable resistors let you fine tune frequency steps and mark space ratios on the fly
- Tight thermal stability keeps output edges sharp even during extended debug sessions
- Standardized header spacing simplifies mating with common development shields and proto boards
