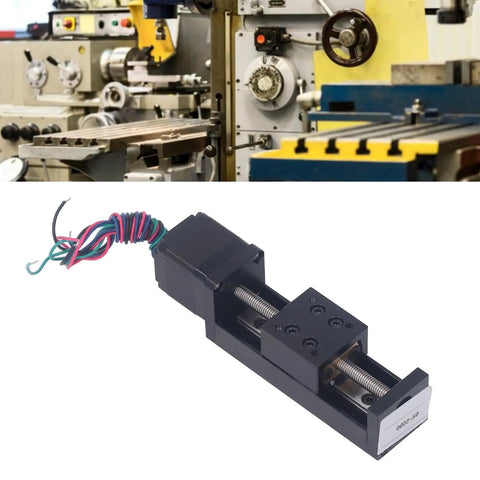

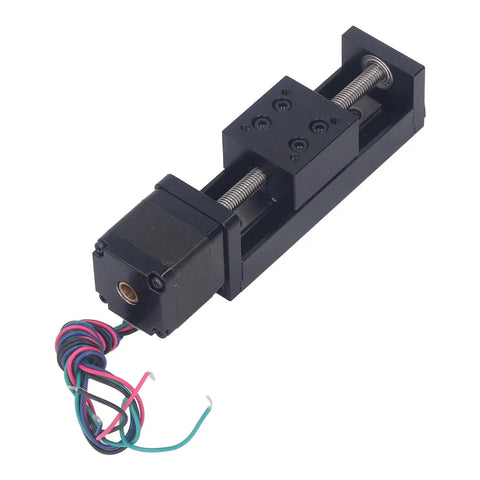

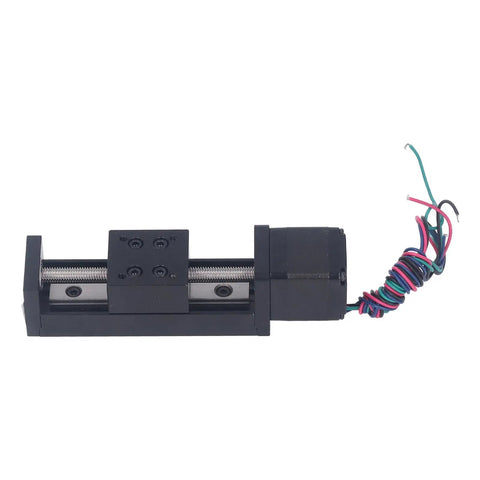

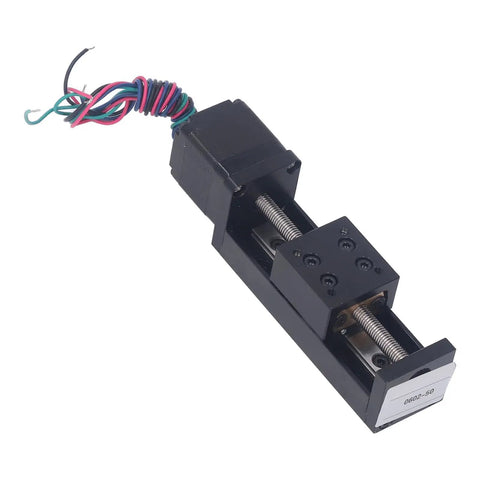

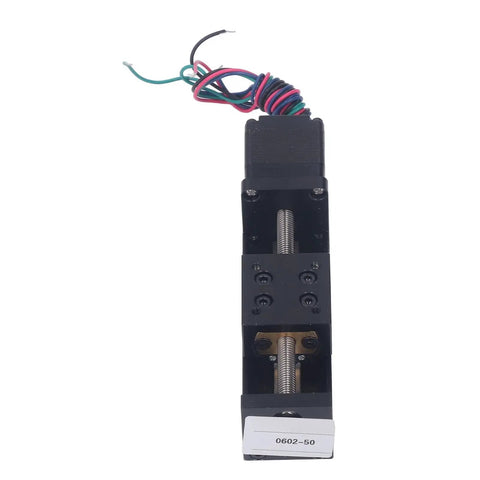

Top Shelf Mini Linear Rail Stage With Integrated Stepper Motor 50Mm Smooth Glide Travel For Xyz Precision Positioning Built Like A Tank Rigid Frame Ready To Roll For Cnc Milling And Tinkering Projects

Single Unit Compact Linear Slide Actuator For CNC
✔️ 50mm travel linear slide unit with integrated stepper drive

This compact mini linear rail stage acts as a precision positioning module for DIY CNC routers, optical mounts, and lab test rigs. Its sealed steel carriage rides along a hardened ground shaft to handle tight tolerances while the direct-drive motor cuts vibration during rapid movements.

✅ Horizontal load capacity up to 5kg with 1kg vertical support
✅ Stepper motor runs at 0.6A current with 1.8-degree step angles
✅ Precision positioning hits ±0.1mm repeat accuracy every cycle
✅ Travel distance measures 50mm while maintaining speeds near 120 mm s

💡 What mechanical details make a linear stage handy for heavy duty positioning jobs?
Killing vibration on a workbench setup boils down to matching ride quality with motor punch.
- Look for preload bearings that lock out wobble when you reverse direction fast
- Mind the lead screw pitch to keep feed rates steady under heavy cutting loads
- Grab a base plate that bolts straight to standard t-slot framing without extra brackets
- Trust closed loop drivers to dial in silent ramp ups and crisp stopping points

✝️
