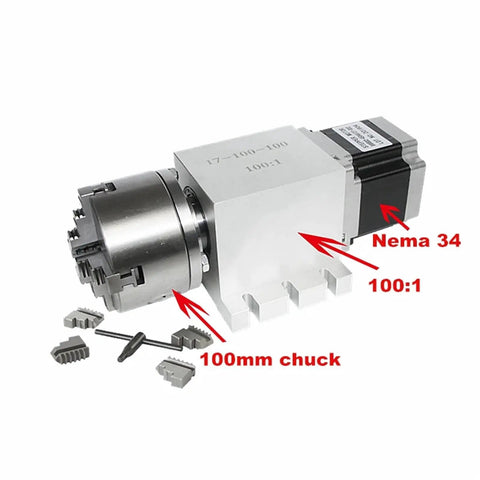

Top Shelf Fourth Axis Rotary Dividing Head Featuring Slick Retarder Drive And Killer Precision Jaw Chucks For Cnc Router Machines Straight Up Milling Beast Upgrade
✔️ Model 17 80 100a Fifty Seven Watt Motor Powers The Main Gearbox

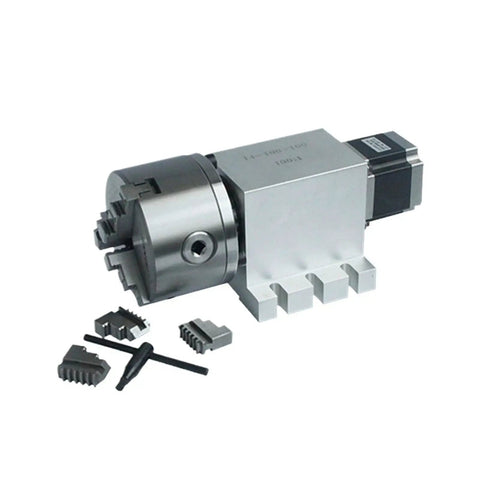

This fourth axis rotary dividing head upgrades your cnc router by adding smooth continuous rotation or precise index indexing for complex machining jobs. You typically mount it directly to your machine table to hold workpieces steady while cutting curves, engraving circular patterns, or milling multi sided components without repositioning.
✅ Integrated retard drive mechanism ensures steady movement under load✅ Precision jaw chucks securely clamp odd shaped blanks during cuts
✅ Compact footprint fits standard cnc router table mounting holes
💡 What setup factors matter most when integrating a rotary dividing head into an existing cnc routing workflow
Hooking up this handy unit keeps your build moving without constant readjustments and saves major time on the shop floor
- Verify your cnc controller supports pulse direction signals for accurate indexing steps
- Set the gear ratio match dial until the motor turns freely without skipping torque
- Test dry cycles at low speeds before engaging materials to confirm smooth rotation
- Secure base mounting bolts evenly to eliminate vibration during heavy cuts
