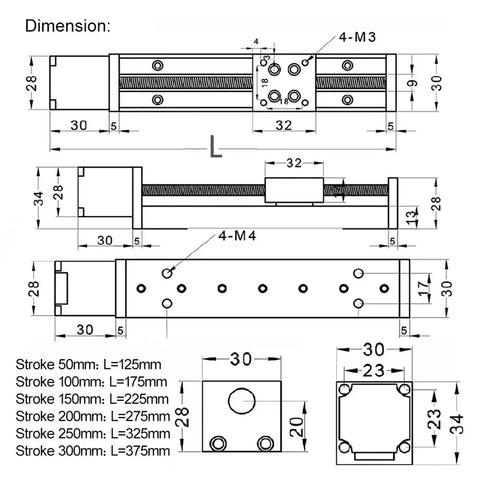

Top Shelf Cnc Gantry 3 Axis X Y Z Linear Stage With Slick T Frame Slide Rail And Rock Solid Nema 11 Stepper Motor For Smooth Ride Quality Motion Control 50 To 300 Mm Stroke Range

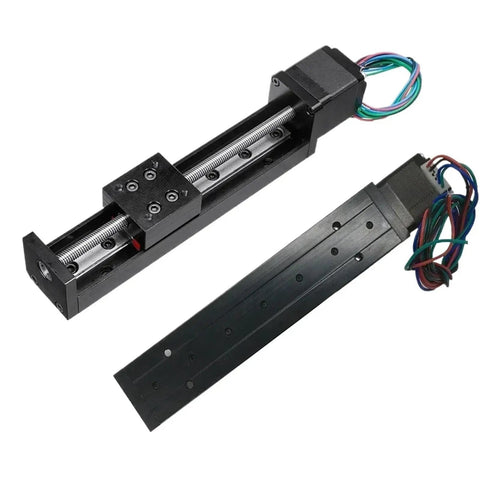

Precision CNC X Y Z Linear Stage With Stepper Motor Drive
✔️ NEMA11 motor, 0.03mm accuracy, 80mm/s speed, 5kg horizontal load

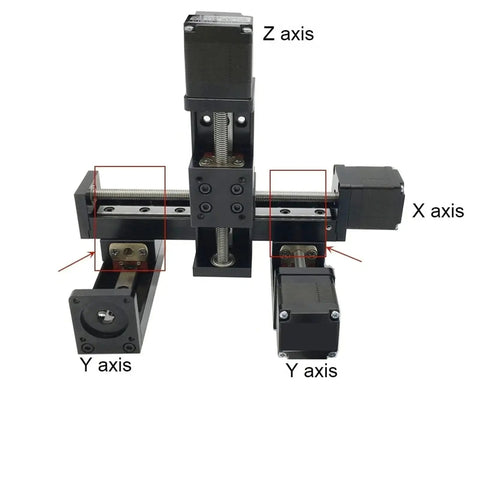

This straight rail linear stage delivers reliable three axis movement for desktop milling, laser cutting rigs, and automated printing boards. Built around a rigid T frame slide system, it keeps tools aligned while you tackle precise cut jobs or smooth probe scans.

✅ L shaped link board for quick bench assembly ✅ 28 millimeter hybrid motor delivering 6.5Ncm holding torque ✅ Repeatability holds tight between 0.02mm and 0.03mm ✅ Matched ball screw choices in 4mm, 6mm or 12mm lead pitch ✅ Supports up to 5kg side pulls and 1kg vertical drops

💡 How do you stop step loss and drift on open loop cnc motion stages during heavy cuts? You need a handy rig that stays locked down without dragging extra wires. - Thickened aluminum plates absorb vibration before it travels down the tool bit - C grade ground screws mesh smoothly with matching nuts to kill unwanted play - Calibrated pulse settings track exact carriage stops even when running full tilt - Swap travel lengths on the fly by trimming the rod ends instead of buying new units

✝️
