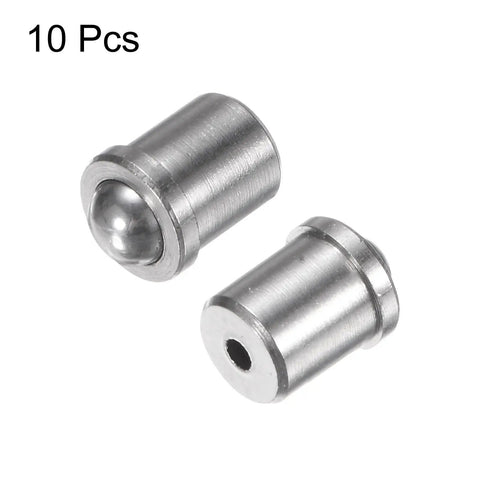

Top Shelf 304 Stainless Steel Ball Spring Plungers 10 Pack Precision Positioning Hardware For Furniture And Mechanics Sweet Smooth Glide Badass Heavy Duty Build Quality

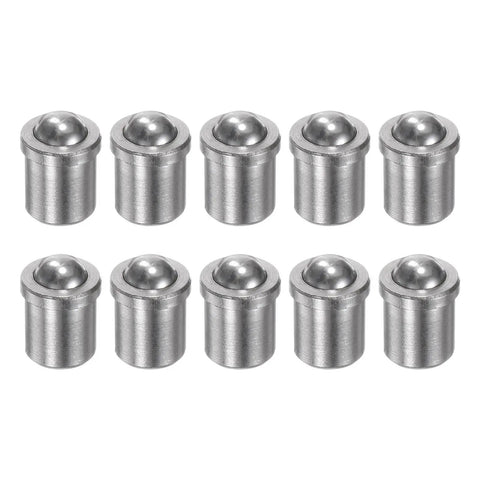

✔️ 304 Steel 4mm Body Dia 10 Pack Press In Locking Plungers For Drawer
This ten piece set of stainless steel compression pins serves as a reliable indexing and locking method for cabinetry and light mechanical builds. You press them straight into prepared holes to keep drawer slides, test fixtures, and small automation frames aligned during daily tasks.
✅ Body Diameter measures 4mm / 0.157 inch with plus minus zero point zero five tolerance✅ Body Length sits at 5mm / 0.197 inch for compact mounting profiles
✅ Overall Length reaches 6mm / 0.24 inch to span standard panel thicknesses
✅ Overall Diameter sits at 4.5mm / 0.18 inch around the outer housing ring
✅ Elasticity Range delivers 14 Newtons of consistent pushing force
✅ Surface Roughness finishes at Ra 3.2 for low friction sliding motion
✅ Material grades out as 304 Stainless Steel for rust resistant durability
💡 How do you calculate the optimal preload specification for a spring loaded positioning clamp in heavy duty tooling?
Matching the compression curve to your mounting plate thickness ensures consistent indexing under vibration.
- Calculate the required travel distance minus the installed height to find the exact millimeter gap for spring compression
- Select a unit rated above your maximum lateral load so the internal ball never slips when torque gets applied
- Stick to sealed housings when shop debris could jam the rolling element and ruin your alignment schedule
This approach keeps your setup handy and stops costly downtime on the shop floor.
