Top Shelf 2 Pack Retractable Spring Plunger With Pull Ring M16x1.5 Carbon Steel Indexing Pin Badass Industrial Gear Built Tough For Cabinets Shrugs Off Rust Daily Crushes Heavy Demands Real Deal Quality
✔️ M16x1.5 Metric Thread Carbon Steel Locking Pin 2 Pack Set

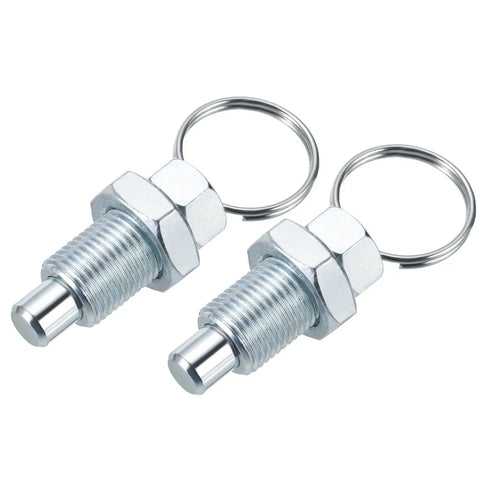

This heavy duty retractable spring plunger is a reliable indexing pin designed for workshop jigs, custom cabinets, and light machinery setups. The flat head profile slides smoothly into guide holes while the integrated pull ring lets you engage or release locking pressure by hand. You get two silver finished units per box, ready to mount with the included hex nuts on virtually any standard fixturing project.
✅ Overall length measures 73 mm / 2.87 inch along the central shaft✅ Pin cross section runs 10 x 10 mm / 0.39 x 0.39 inch for solid grip
✅ Thread reach extends 19 mm / 0.75 inch inside the mounting housing
✅ Includes matching hex nuts for Secure wall or frame mounting
💡 What is the best way to mount a retractable plunger bolt on wooden fixtures? Mounting these locating pins is straightforward once you drill the clearance hole before threading the base home. - Measure your stock thickness carefully so the metal thread bites fully without poking through - Drill a guide hole slightly wider than the 10mm pin diameter for smooth sliding movement - Tighten the supplied hex nut against the wood surface to lock the housing firmly in position This setup makes the whole assembly a handy deal for holding plates steady during routing or clamping tasks.
✝️
