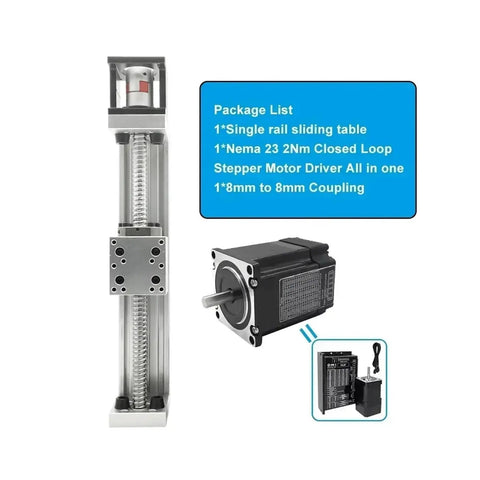

Top Notch Nema23 Servo Motor Linear Actuator Stage Slide With Sfu1610 Ball Screw Guide For X Y Z Axis Robotics Kits That Run Totally Smooth And Dead Tight
✔️ DXG-YR60 model, 15mm guide, SFU1610 ball screw system
This linear actuator stage slide pairs a reliable Nema23 servo motor with a precision ball screw drive to deliver controlled, repeatable motion along the X, Y, or Z axis. Engineers and hobbyists commonly mount these modules directly onto custom frames, CNC routers, 3D printers, and automated pick-and-place rigs to handle demanding positioning tasks without backlash or drift.

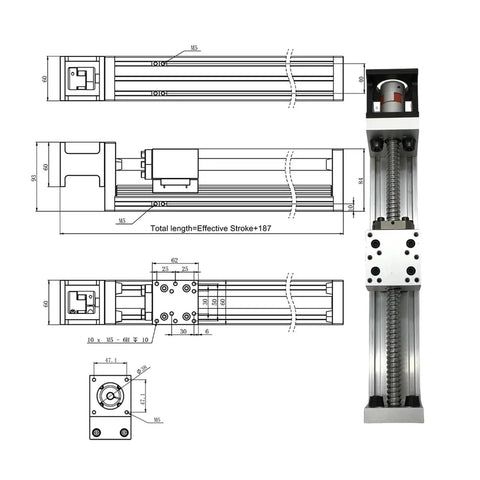

✅ Guide width measures 15 millimeters with a compact 60 by 62 millimeter mounting footprint✅ Select effective strokes from 50 to 1200 millimeters plus an extra 187 millimeters for total rail length
✅ Handle horizontal loads up to 50 kilograms and vertical loads up to 30 kilograms max
✅ Maintain tight repeat positioning accuracy down to plus or minus 0.03 millimeters
💡 What factors determine how smoothly a linear actuator stage slides under heavy payloads and why do engineers frequently size SFU1610 ball screws for automation projects?
This slide configuration maintains steady travel speed while keeping backlash near zero during continuous operation.
- Precision rolled ball screws pair with hardened steel rails to eliminate play under side loading conditions.
- Proper servo coupling alignment transfer torque efficiently so stages accelerate quickly without stalling out.
- Sealed dust covers protect internal components from metal shavings and debris on busy machine shop floors.
- Standardized mounting holes simplify integration with existing aluminum extrusion or welded steel frames.
✝️
