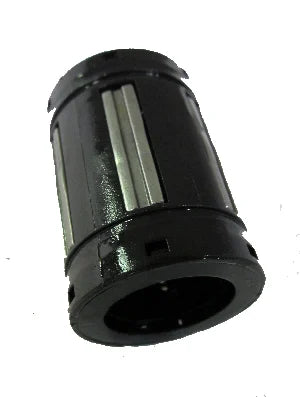

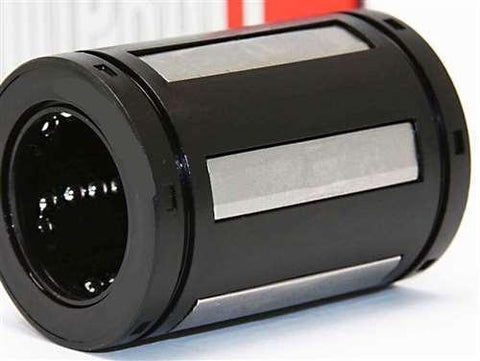

TK20 Self Aligning Ball Bushings 20 mm Linear Motion

TK20 20 Bore High Load Standard type TopBall metric type linear motion ball bushings/bearing inner diameter(bore) is 20 mm dimensions with built-in seals. the Topball slide bush is a high performance bushing with three times the load capacity capable of providing up to 27 times normal travel life of a conventional slide bushing high accuracy grade linear bushings series mainly used in the USA.

• Item: TK20 Ball Bearing
• Type: Linear Motion Ball Bushing
• Ball circuit: 6
• Size: 20 x 32 x 45 mm
• Bearing Inner Diameter: 20 mm
• Bearing Outer Diameter: 32 mm
• Bearing Length: 45 mm
• Dynamic Load Rating: 2090 N
• Static Load Rating: 2630 N
• Quantity: One Bearing
