NB

TK20 NB Self Aligning 20mm Ball Bushings Linear Motion

$32.99
SKU: TK20-NB
UPC: 00193019133347
Item Name: TK20 NB Bearing
Type: NB Linear System Ball Bushing
Shaft Diameter: 20mm
Ball circuit: 6
Dynamic Load Rating: 2090 N
TK20 NB TopBall Linear Systems Bearing
20mm Inner Diameter
Made in Japan


TK20 NB 20mm Bore Standard TopBall type linear motion ball bushings bearings, inner diameter(bore) is 20mm dimensions with built-in seals, the Topball slide bush is a high performance bushing with three times the load capacity, capable of providing up to 27 times normal travel life of a conventional slide bushing, high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • Item Name: TK20 NB Bearing
  • Type: NB Linear System Ball Bushing
  • Shaft Diameter: 20mm
  • Ball circuit: 6
  • Dynamic Load Rating: 2090 N
  • Static Load Rating: 2630 N

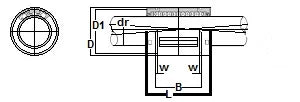

Dimensions(mm)
dr D L B W D1
mm tolerance mm tolerance mm tolerance
20 1-9 32 45 0.2 31.5 0.2 1.6 30.3
