TIG Collet Bodies 10N Series Kit With Alumina Ceramic Cups For SR WP 17 18 26 Torches, 16 Piece Set Includes 10N22 To 10N32 Cup Sizes.040, 1/16, 3/32, 1/8 Inch, Fits Lincoln PTA 17/18/26, Miller Diamondback DB17/DB18/DB26, Weldcraft WP 17/18/26

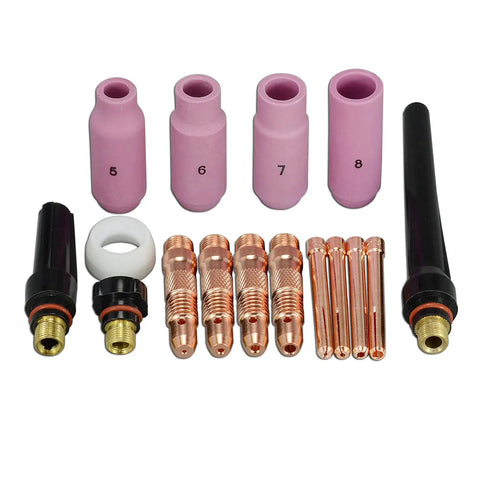

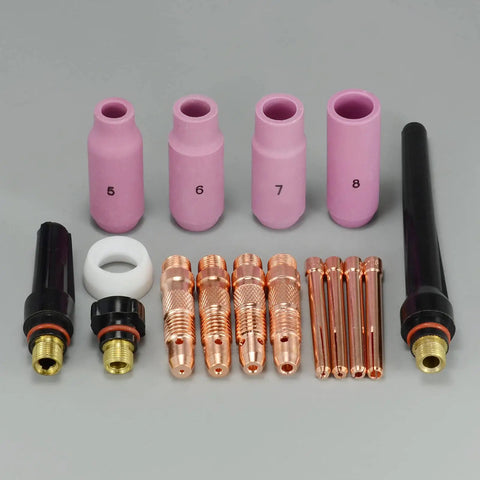

16 Piece TIG Collet Bodies Kit with Ceramic Cups
✔️ Includes collets 10N22-25, bodies 10N30-32, and ceramic cups

This TIG consumables kit is designed for 17/18/26 series air cooled and 18 series water cooled welding torches. It fits Lincoln PTA-17, PTA-18 and PTA-26 torches, Miller Diamondback DB17/DB18/DB26 torches, and Weldcraft WP-17/WP-18/WP-26 torches, providing a complete set of ceramic cups, collets, collet bodies, back caps, and gasket cup for easy maintenance in shop or fieldWork.

✅ TIG Alumina ceramic nozzles - 4 pieces: 10N49 (#5) D8.0 x 47mm (5/16" ID / 8.0mm), 10N48 (#6) D9.5 x 47mm (3/8" / 9.5mm), 10N47 (#7) D11.0 x 47mm (7/16" / 11.0mm), 10N46 (#8) D12.5 x 47mm (1/2" / 12.5mm)

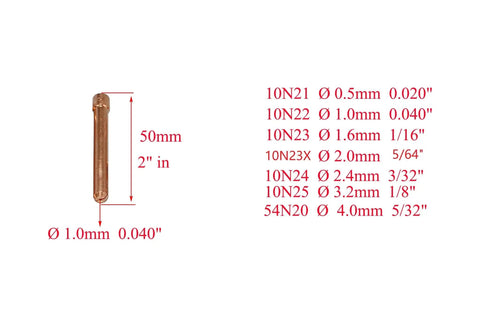

✅ TIG Collets - 10N22 0.040" (Ø1.0mm), 10N23 1/16" (Ø1.6mm), 10N24 3/32" (Ø2.4mm), 10N25 1/8" (Ø3.2mm)

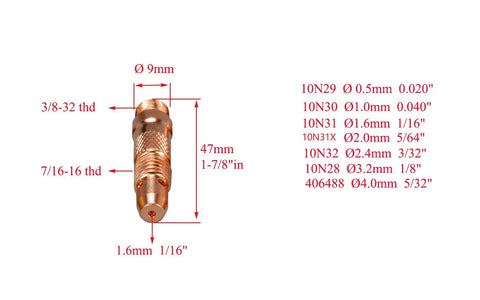

✅ TIG Collet Bodies - 10N30 0.040" (Ø1.0mm), 10N31 1/16" (Ø1.6mm), 10N32 3/32" (Ø2.4mm), 10N28 1/8" (Ø3.2mm)

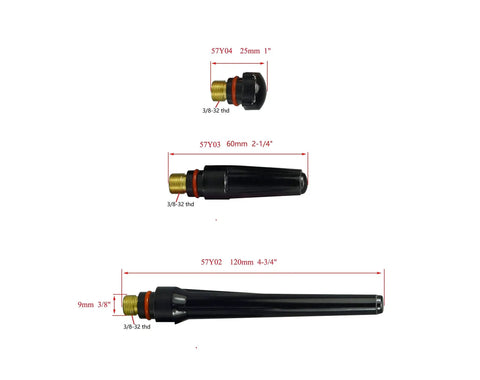

✅ TIG Back caps and gland items - 3x back caps: 57Y02 Long, 57Y03 Medium, 57Y04 Short; 1x gasket cup 18CG; Gold color gasket for seal

💡 What is a TIG collet bodies kit used for in welding torches?

This is a handy, handy set that helps keep common TIG torch parts fresh and functioning on 17/18/26 series machines. - It fits Lincoln PTA 17/18/26, Miller Diamondback DB17/DB18/DB26, Weldcraft WP-17/WP-18/WP-26 - It includes 10N22-25 collets and 10N30-32 bodies for easy sizing - It provides ceramic cups and back caps for stable arcs and long life - It bundles a gasket cup 18CG with gold gasket color for tight seals ✝️
