Three Quarters Inch By Ten Inch Zinc Plated Wedge Anchor For Concrete Dry Environments Box Of Ten High Strength Fastener For Secure Cement Mounts And Structural Fixings

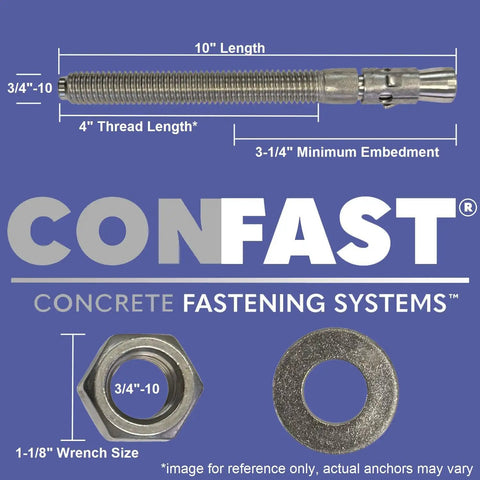

3/4 in x 10 in Zinc Plated Wedge Anchor for Concrete
✔️ Box of ten; 3/4" diameter; 10" long; zinc-plated carbon steel

These durable wedge anchors are designed for dry concrete environments and are ideal for securing heavy fixtures to structural bases including machinery, rails, and supports.

✅ Anchor diameter: 3/4 in (19 mm)
✅ Length: 10 in (254 mm)
✅ Thread length: 4 in (102 mm)
✅ Minimum embedment: 3-1/4 in (83 mm)
✅ Maximum fixture thickness: 6 in (152 mm)
✅ Drill base hole: 3/4 in (19 mm); fixture hole: 1 in (25.4 mm)
✅ Material: Carbon steel, zinc plated
✅ Torque: 150-175 ft-lbs
✅ Spacing between anchors: 7-1/2 in (191 mm)
✅ Edge distance from edge: 3-3/4 in (95 mm)
✅ Environment: Dry environment
✅ Pack size: Box of ten

💡 What is a common use case for concrete wedge anchors in structural fixes?

- They are handy for securing heavy fixtures to concrete foundations in dry environments.
- They rely on wedge expansion to bite into the concrete for a strong, reliable hold.
- Install with a 3/4 in hole, minimum embedment of 3-1/4 in, and torque of 150-175 ft-lbs.
- Always maintain edge distance of 3-3/4 in and center-to-center spacing of 7-1/2 in for safety.
✝️
