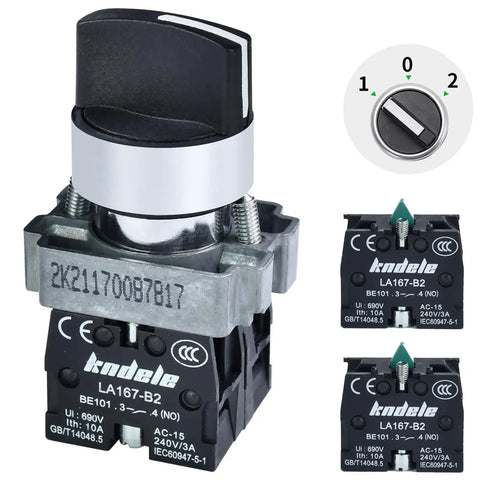

Three-Position Latching Rotary Switch With LED Status Indicators, 10A 660VAC DPST 2NO, IP65 Waterproof, Seven Eighths Inch Panel Mount, 22mm Diameter Industrial On Off On Control Switch
✔️ 22mm panel mount, IP65, DPST 10A 660VAC, LED indicators
This rugged 3-position latching rotary switch provides reliable on-off-on control with built-in LED indicators, delivering clear status visibility in harsh industrial environments. It is designed for 22mm panels and fits panel thickness up to about 6mm, making it ideal for control panels, motor starters, and automation equipment in factories and machines.
✅ Illuminated left and right positions indicate active state for safer operation

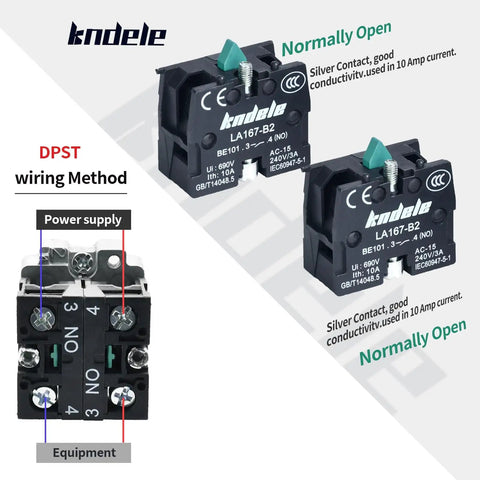

✅ DPST configuration with 2 normally open contacts; rated 10A at 660VAC, 3A at 240VAC
✅ 22mm panel mount; IP65 front panel protection against dust and water; double-screw fixing for stability

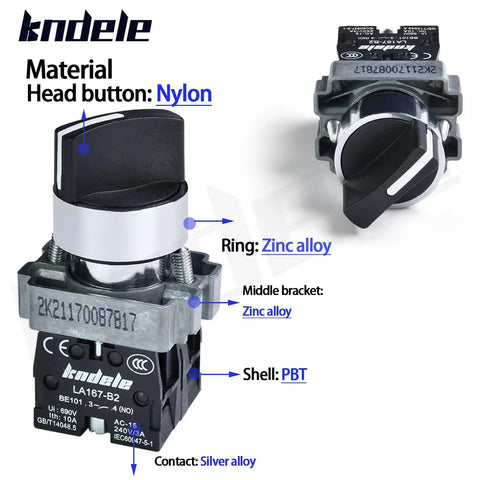

✅ Silver alloy contacts and brass conductors for durable, high-conductivity performance

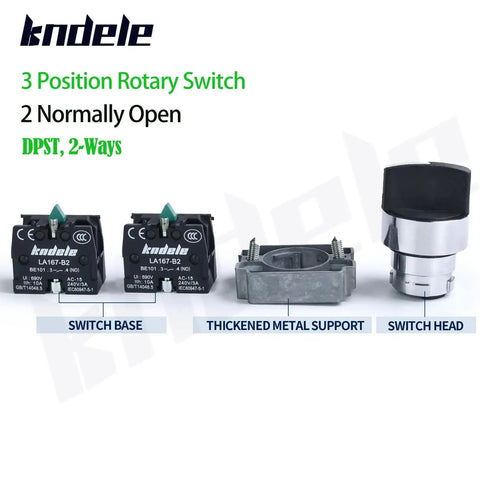

✅ Screw-terminal design supports 0.5-2.5 mm² wires; includes 1 x selector switch and 4 terminals

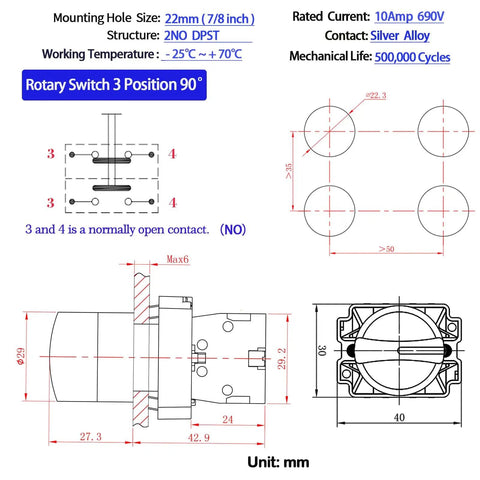

| Dimension | Metric | Inches |
|---|---|---|
| Overall size (L x W x H) | 28.7 x 32.5 x 76 mm | 1.13 x 1.28 x 2.99 in |
| Panel cutout diameter | 22 mm | 0.87 in |
| Max panel thickness | 8.5 mm | 0.33 in |
💡 What is a 22mm panel-mount three-position rotary switch with LED indicators used for in control systems?
This handy device lets operators safely manage circuits from a single panel with clear visual status cues.

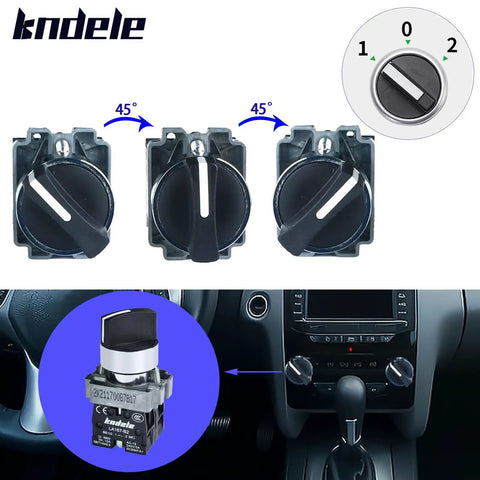

- Provides left-off-right operation for intuitive manual control
- LED indicators give quick on/off state visibility on the shop floor
- IP65 protection keeps operation reliable in dusty or wet environments
