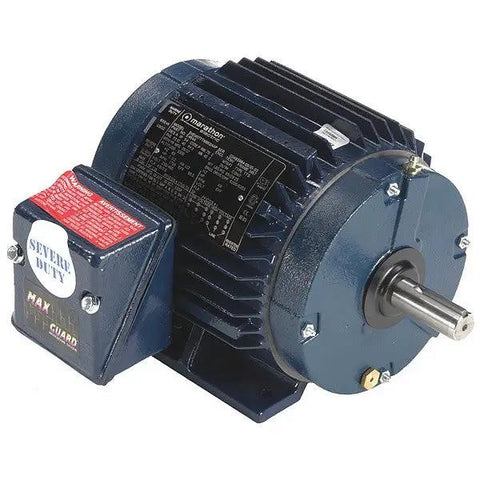

Three Phase Severe Duty Motor One And A Half HP 145T Frame 230/460V AC 1755 RPM TEFC Rigid Base Industrial Motor For Heavy Duty Equipment 60 Hz Full Load Amps 4.6/2.3

Heavy-Duty 1.5 HP Three-Phase Motor, 145T Frame, Single Unit
✔️ 1.5 HP, 1755 RPM, TEFC, rigid base, 60 Hz, 230/460V

Severe duty motor built for heavy equipment in industrial settings such as manufacturing, mining, and material handling. This three-phase unit uses a rigid base mounting and a TEFC enclosure for protection in tough environments.

✅ HP: 1.5 HP
✅ Frame: 145T
✅ Voltage: 230/460V AC
✅ Frequency: 60 Hz
✅ RPM: 1755
✅ Full Load Amps: 4.6/2.3 A
✅ Enclosure: TEFC
✅ Mounting: Rigid Base
✅ Insulation Class: F
✅ Service Factor: 1.15
✅ Bearings: Ball bearings
✅ Frame Material: Cast Iron
✅ Ambient Max: 40 C
✅ Rotation: CW/CCW
✅ Duty: Continuous

💡 What is a three-phase severe duty motor used for in heavy industrial settings? This handy drive is built to run continuously in tough apps such as conveyors, crushers, mixers, and presses.
- It is designed for continuous operation with high torque in challenging environments
- It uses a 145T frame with 230/460V input and 60 Hz power
- It features a cast iron frame, ball bearings, and insulation class F for long life
- It mounts on a rigid base for stable, precise alignment
