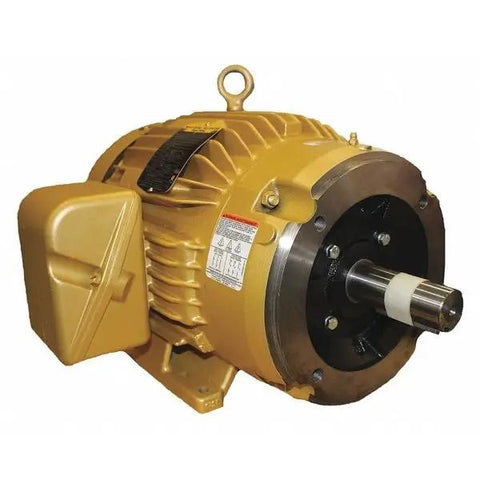

Three Phase General Purpose TEFC Motor 10 HP 215TC Frame 230 And 460 Volt AC 60 Hz 3490 Nameplate RPM C Face Mount Heavy Duty Industrial Drive Built For Rugged Jobs And Everyday Use Full Load Amps 23.6 And 11.8 A
✔️ 10 HP TEFC motor, 215TC frame, 230/460V, 60 Hz, 3490 RPM
General purpose three-phase TEFC motor built for rugged industrial use. This motor is typically found powering conveyors, pumps, fans, compressors, and other heavy equipment in manufacturing and processing plants.
✅ 10 HP output with continuous duty and rated 90.2% efficiency
✅ Frame 215TC and C-face mounting for flexible installation
✅ Voltage 230/460V AC, 60 Hz, three-phase operation
✅ Totally enclosed, fan-cooled (TEFC) enclosure with cast iron frame
✅ Full load amps 23.6/11.8 A and service factor 1.15
✅ Insulation Class F and max ambient 40°C
✅ CW/CCW rotation and ball bearings for durability
✅ CSA, CSA EEV, UR listings for electrical safety
💡 What is a TEFC motor generally used for? TEFC motors are handy for general drive applications in industrial settings. - Protect windings from dust and moisture in harsh environments - Drive conveyors, pumps, fans, and compressors in plants - Provide reliable power for continuous operation
