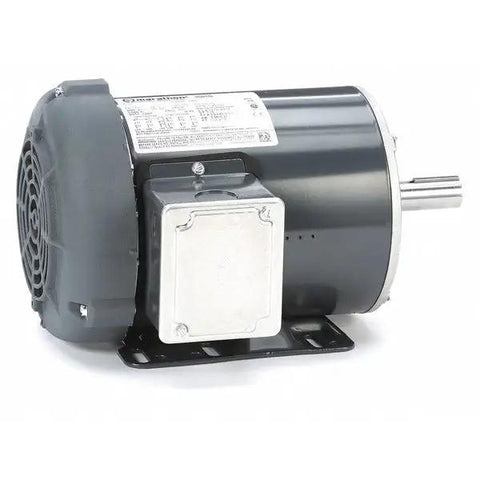

Three Phase General Purpose Motor Workhorse 3/4 HP 143T Frame 230 460V AC 1145 Nameplate RPM TEFC Rigid Base Mount 60 And 50 Hz Durable Industrial Motor For Equipment And Machinery

Single-motor 3/4 HP TEFC 143T, 230/460V, 60/50Hz
✔️ Three-phase TEFC, 143T frame, 230/460V, 1145 RPM, SF 1.15

This general-purpose motor is a three-phase, Totally Enclosed Fan Cooled unit designed for industrial equipment and machinery. It’s a common pick for conveyors, pumps, fans, and other line applications where reliable, continuous-duty power is needed, and it mounts neatly on a rigid base.

✅ 3/4 HP nominal rating
✅ Frame 143T
✅ Dual voltage 230/460V AC
✅ 60/50 Hz operation
✅ TEFC enclosure (Totally Enclosed Fan Cooled)
✅ Rigid base mounting
✅ Service Factor 1.15
✅ Continuous duty
✅ Nameplate RPM 1145
✅ Full-load amps 3.2 A (230V) / 1.6 A (460V)
✅ Insulation class B; Ball bearings; Steel frame
✅ Max ambient temp 40 °C; CW/CCW rotation

💡 What is a general purpose motor used for? This handy unit powers common factory equipment with steady torque and easy installation. - Used to drive conveyors, pumps, fans, and other machinery - Works on 60/50 Hz with dual voltage (230/460V) - TEFC enclosure protects windings in dusty or humid environments - Rigid base mounting ensures proper alignment and serviceability
