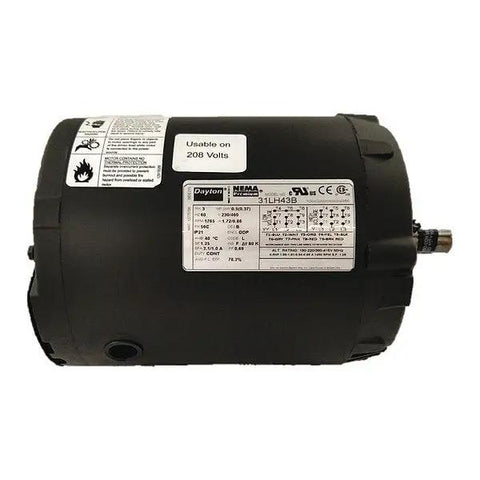

Three-Phase General Purpose Motor Workhorse 1/2 HP 56C Frame Dual Voltage 230/460V Open Drip Proof Enclosure Industrial Grade Induction Motor 1765 RPM 60 Hz 1.7/0.86 A C-Face Mount With 1.25 Service Factor

Single Motor: Dual-Voltage 1/2 HP 56C with C-Face Mount
✔️ 230/460V, 60 Hz, 1765 RPM, ODP enclosure, SF 1.25

General purpose three-phase induction motor designed for reliable performance in open drip proof (ODP) enclosures. It’s a common workhorse in conveyors, pumps, fans, and general machine tools in light industrial settings.

✅ 1/2 HP, 56C frame, dual voltage 230/460V
✅ 60 Hz, continuous duty, nominal efficiency ~78.2%
✅ Open drip proof enclosure, ball bearings, insulation Class F
✅ C-face mounting, max ambient 40°C, rotation CW/CCW
✅ Service factor 1.25, 1.7 A / 0.86 A full-load amps

💡 What is a general purpose three-phase motor used for in industrial settings?

These motors are handy for driving everyday equipment that runs on 60 Hz power, offering straightforward installation and dependable speed control.

- Drives pumps, fans, conveyors, and other standard loads

- Works with common 230/460V power sources

- Easy to replace and mount with a 56C frame and C-face configuration
