Three-Phase General Purpose Motor Three Quarters Horsepower 56 Frame TEFC 208 230 460 Volt AC 1750 RPM 60 to 50 Hz Rugged Rigid Base Mount Class F Insulation Full Load Amps 2.6 to 2.7 A and 1.3 A Built to Last for Industrial Equipment

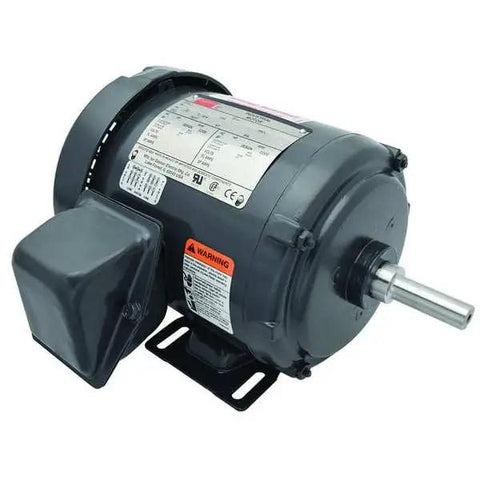

3/4 HP TEFC 56-Frame Motor, Pack:1, 208-460V
✔️ 3/4 hp, 56 frame, TEFC, 208-230/460V, 1750 rpm

General purpose three-phase motor designed for industrial equipment such as conveyors, pumps, and fans. Built with a rigid base and Class F insulation, it’s ready for continuous-duty operation in tough plant settings.

✅ 3/4 HP
✅ Frame 56
✅ TEFC (Totally Enclosed Fan Cooled) housing
✅ Voltage 208-230/460V AC, 60/50 Hz
✅ 1750 RPM nominal
✅ Full Load Amps 2.6-2.7 A / 1.3 A
✅ Service Factor 1.25
✅ Insulation Class F
✅ Ball bearings
✅ Rigid base mounting
✅ Ambient max 40°C
✅ Continuous duty

💡 What is a general purpose three-phase motor used for in industrial settings?

A handy baseline drive for a lot of factory equipment.

- Useful for conveyors, pumps, and fans in manufacturing lines - TEFC enclosure protects against dust and moisture in harsh plants - 1750 RPM at 60/50 Hz supports standard speed control - Compatible with 208-230/460V power systems for global use
