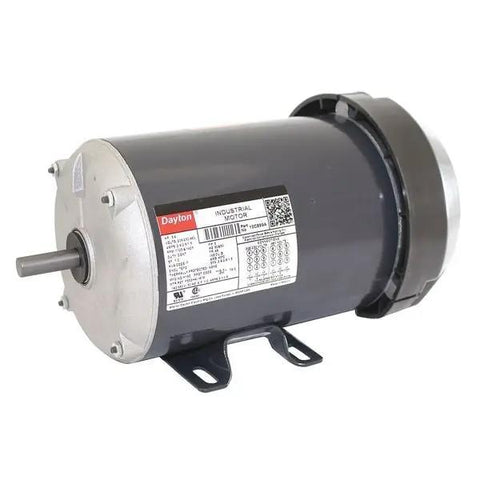

Three Phase General Purpose Motor Three Quarter HP TEFC 48 Frame 208 230 460 Volt AC 1725 RPM Built To Last With Rigid Base Mount 60 Or 50 Hz Full Load Amps 2.8 Or 1.5 A Class B Insulation

Three-Phase 3/4 HP TEFC Motor, 48 Frame, 208-460V AC
✔️ 3/4 HP TEFC, 48 frame, 208-230/460V, 60/50Hz, 2.8A

General purpose, three-phase TEFC motor with rigid base mounting, designed for continuous duty in pumps, conveyors, fans, and other small machinery. It runs on 208-230/460V AC and supports 50/60 Hz operation, making it a solid fit for workshop and light industrial use.

✅ Frame 48
✅ 0.75 HP (3/4 HP)
✅ Three-Phase
✅ TEFC enclosure (Totally Enclosed Fan Cooled)
✅ Voltage 208-230/460V AC
✅ 60/50 Hz
✅ Full Load Amps 2.8 A (60 Hz) / 1.5 A (50 Hz)
✅ Rigid base mounting
✅ Insulation Class B
✅ Ball bearings (sealed)
✅ Continuous duty, 1725 RPM
✅ CW/CCW rotation
✅ Steel frame material
✅ Ambient max 40 C

💡 What is a general purpose motor used for in typical shop or light industrial applications?

These handy motors power common equipment reliably in small facilities.

• Power pumps, fans, conveyors, and light machines
• Operate on 208-230/460V AC, 50/60 Hz input
• TEFC enclosure and rigid base mounting for durability
