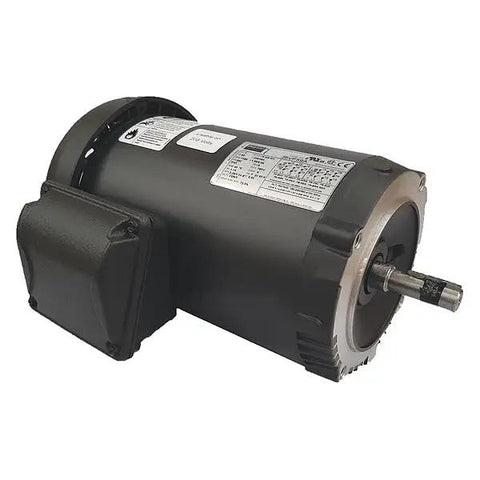

Three Phase General Purpose Motor One Half HP 56C Frame Workhorse Quality 230 To 460 Volt AC 60 Hz 1160 Nameplate RPM TEFC Totally Enclosed Fan Cooled C Face Mount Industrial Grade

Half HP 56C TEFC 3-Phase Motor 230/460V Single Unit
✔️ 1/2 HP, 56C frame, 230/460V, 60 Hz, TEFC, CW/CCW shaft

General purpose motor for industrial use, featuring a TEFC enclosure and a 56C frame. This unit is commonly mounted on conveyors, pumps, and fans operating on 230/460V AC at 60 Hz.

✅ 1/2 HP rating, 1160 nameplate RPM, 56C frame, TEFC enclosure, CW/CCW shaft
✅ Full-load amps 1.9/0.99 A, service factor 1.15
✅ Insulation class F, ball bearing design, continuous duty
✅ Ambient max 40 C, dual voltage 230/460V, 60 Hz
✅ C-face mounting, steel frame construction

💡 What is a general purpose three-phase motor used for?

These handy motors power a wide range of industrial equipment and systems.

• Industrial drives for conveyors, pumps, and fans
• Reliable 230/460V 60 Hz service for factory lines
• Standard 56C frame with TEFC protection for easy swaps
• C-face mounting for flexible installation
