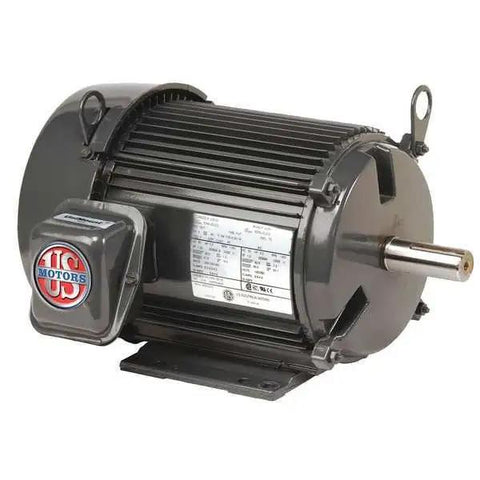

Three Phase General Purpose Motor 7.5 HP 184T Frame 230 To 460V AC 3600 Nameplate RPM TEFC Totally Enclosed Fan Cooled Rigid Base Mount 60 To 50 Hz 17.7 To 8.9 A

Single 7.5 HP TEFC 184T Three-Phase Motor, 230/460V
✔️ 3600 RPM, 7.5 HP, 184T frame, 230/460V AC, 60/50 Hz

General purpose three-phase motor with TEFC enclosure, built for durable, low-maintenance service in conveyors, pumps, fans, and other industrial machinery.

✅ 7.5 HP rating with 184T frame for standard mounting
✅ TEFC enclosure and rigid base mounting for rugged applications
✅ 230/460V AC, 60/50 Hz, three-phase power input
✅ Full load amps 17.7/8.9 A; insulation Class F; service factor 1.25
✅ Aluminum frame, ball bearings, max ambient 40°C, CW/CCW rotation
✅ Continuous duty, CE, CSA, UL listed

💡 What is a three-phase general purpose motor used for in industrial equipment?

These handy motors power everyday equipment in industrial settings.

• three-phase induction motor for conveyors, pumps, fans, and machine tools
• 230/460V AC input at 50/60 Hz for common industrial power
• TEFC enclosure protects against dust and moisture in harsh environments
• service factor 1.25 provides extra torque for startup and overload
