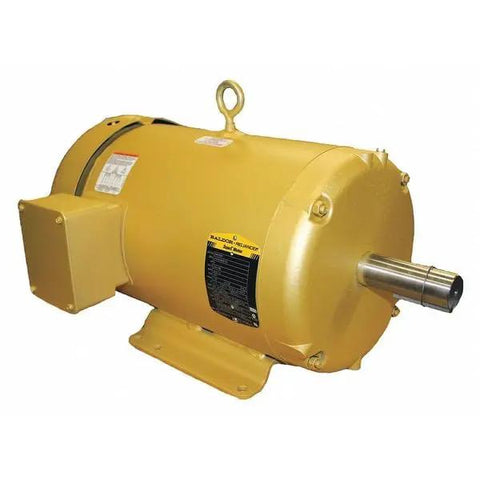

Three Phase General Purpose Motor 5 HP Workhorse TEFC 215T Frame 208-230/460V AC 60 Hz 1160 RPM Rigid Base Mount Industrial Grade Built For Heavy Duty Applications

High-efficiency 5 HP TEFC three-phase motor with rigid base
✔️ 5 HP TEFC three-phase, 1160 RPM, 208-230/460V, base-mount, single unit

This general purpose motor is built for heavy-duty service in industrial settings. With a totally enclosed fan-cooled (TEFC) design and rigid base mounting, it excels in conveyors, pumps, fans, and other machinery that run continuously at 60 Hz.

✅ 5 HP continuous-duty operation at 1160 RPM
✅ TEFC enclosure for protection in harsh environments
✅ Frame 215T, 60 Hz, 208-230/460V three-phase
✅ Full Load Amps 14.4/7.2 A, Insulation Class F
✅ Service Factor 1.15 and ball bearings for longevity
✅ Max ambient temp 40 C, CW/CCW shaft rotation
✅ Nominal efficiency 89.5%, CSA/CSA EEV/UR certified

💡 What is a three-phase general purpose motor used for in industry?

A handy overview to help buyers understand common uses and benefits.

- drives conveyors, pumps, fans, and light machinery - 60 Hz operation with 208-230/460V for flexible power - TEFC enclosure and rigid base mounting simplify installation
