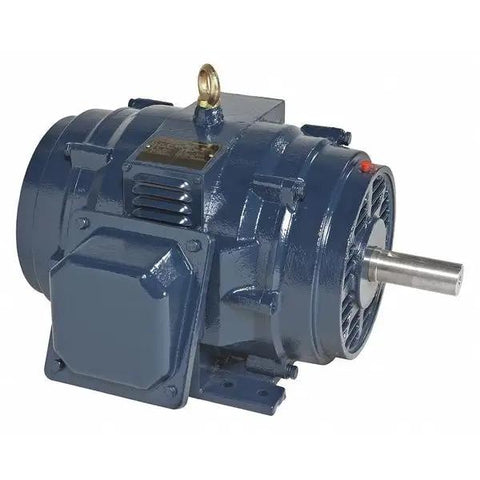

Three Phase General Purpose Motor 30 HP 286T Open Drip Proof Workhorse for Industrial Use 230 460V AC, 60 Hz, 1775 RPM, Rigid Base Mount, Insulation Class F, Service Factor 1.15, Full Load Amps 73 36.5 A
✔️ 30 HP, 286T frame, 230/460V, 60 Hz, 1775 RPM, SF 1.15
This general purpose three-phase motor is built for rugged industrial use, offering reliable operation in pumps, fans, conveyors, and other drive systems. It features an open drip proof enclosure, rigid base mounting, insulation class F, and a service factor of 1.15 for long life.
✅ 30 HP continuous duty with nominal efficiency ~94%
✅ Frame 286T with rigid base mounting
✅ 230/460V AC, 60 Hz, three-phase power
✅ Open Drip Proof enclosure, ball bearings
✅ Insulation Class F, Service Factor 1.15
✅ Full Load Amps 73/36.5 A, nameplate speed 1775 RPM
✅ Max ambient 40 C, CE/CSA/UL Recognized
💡 What is a three-phase general purpose motor used for in industrial equipment?
These handy motors power a wide range of machines, delivering steady speed and torque in manufacturing and processing lines.
- Used in conveyors, pumps, fans, and mixers- Handles 230/460V at 60 Hz power for reliable operation
- Built for continuous duty with service factor 1.15 and insulation class F
