Three Phase General Purpose Motor 3 HP 182T Frame TEFC Enclosed, Rugged Beefy Base Mounting, 208-230/460V AC, 60 Hz, 1755 RPM, Class F Insulation, Full Load Amps 8.2/4.1 A, Built For Real Industrial Use

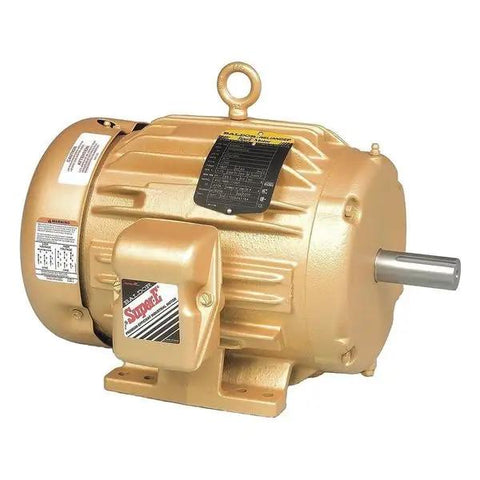

3-HP TEFC General Purpose Motor, 182T Base Mounted
✔️ 208-230/460V AC, 60 Hz, 1755 RPM, SF 1.15, 89.5% eff, Single unit

This rugged three-phase general purpose motor is designed for industrial use with a totally enclosed fan-cooled enclosure, base mounting, and a cast-iron frame. It’s built to handle continuous-duty operation in harsh production environments, powering pumps, fans, conveyors, and other machinery.

✅ 3 HP general purpose motor with TEFC enclosure and cast-iron frame
✅ Frame 182T with rigid base mounting for solid installation
✅ Voltage 208-230/460V AC, 60 Hz, 3-phase input
✅ Full load amps 8.2/4.1 A; service factor 1.15
✅ Nominal efficiency 89.5%; insulation class F
✅ Continuous duty, ambient max 40°C;CW/CCW rotation
✅ Certifications: CSA, CSA EEV, UR

💡 What is a general purpose three-phase motor used for?

These handy motors power a wide range of equipment in industrial settings.

• Powering pumps, fans, conveyors, and other heavy machinery
• Base-mounted configuration for easy alignment and mounting
• Works with standard controls and VFDs for controlled speed
• Built for durability with TEFC protection and a cast-iron frame
